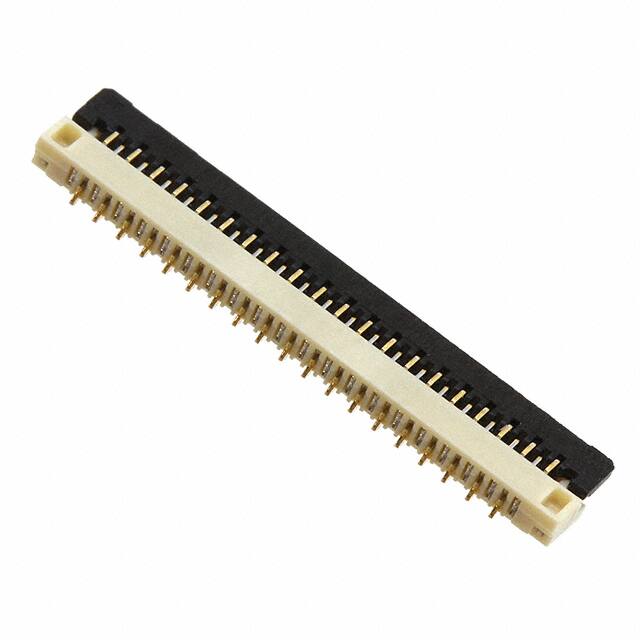

5035663900

Teknik Özellikler

Locking Feature

Flip Lock

Kurşunsuz Kodu

yes

Montaj Tipi

Surface Mount, Right Angle

Housing Color

White

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flat Flex Type

FPC

Insulator Color

NATURAL

Çalışma Sıcaklığı

-40°C~85°C

Pozisyon Sayısı

39

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Total Number Of Contacts

39

Height Above Board

0.037 0.95mm

Sıra Sayısı

1

Ambalaj

Tape & Reel (TR)

Material Flammability Rating

UL94 V-0, UL94 HB

Ffc Fcb Thickness

0.20mm

Seri

Easy-On 503566

Contact Pattern

RECTANGULAR

Reference Standard

UL

Nominal Gerilim

50V

Cable End Type

Tabbed

Pitch

0.012 0.30mm

Actuatorcolor

Black

Terminal

Solder

Current Rating Amps

0.2A

Reliability

COMMERCIAL

Insulation Resistance

50000000Ohm

RoHS Durumu

ROHS3 Compliant

Contact Materials

Phosphor Bronze

Özellikler

Solder Retention

Mounting Option1

LOCKING

Parça Durumu

Obsolete

Yayın Yılı

2015

Mating Cycles

10

Contact Finish

Gold
