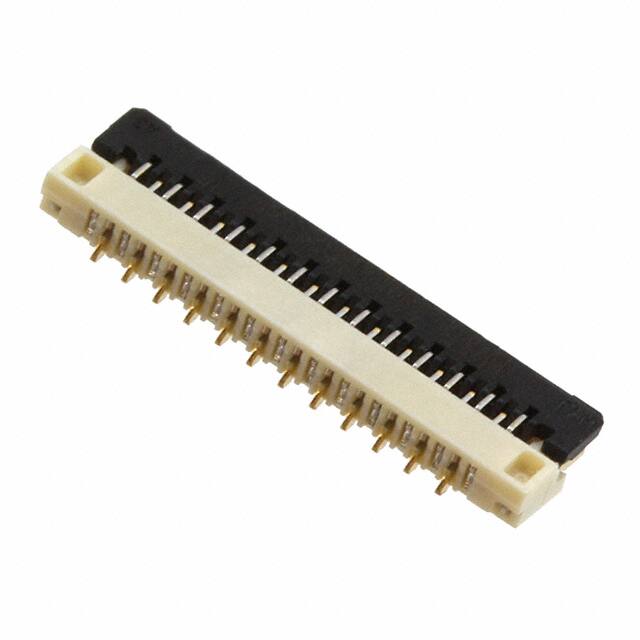

503566-2500

Teknik Özellikler

Elv

Compliant

ECCN Kodu

EAR99

Insulator Color

NATURAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Cut Tape (CT)

Filter Feature

NO

Height Above Board

0.037 0.95mm

Uzunluk

9.15mm

Contact Pattern

RECTANGULAR

Seri

Easy-On 503566

Ul Flammability Code

94V-0

Number Of Contacts

25

Terminal

Solder

Current Rating Amps

0.2A

Cable End Type

Tabbed

Pitch

0.012 0.30mm

Option

GENERAL PURPOSE

Mil Conformance

NO

Mounting Option1

LOCKING

Yayın Yılı

2011

Parça Durumu

Obsolete

RoHS Durumu

RoHS Compliant

Mating Cycles

10

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Stackable

No

Housing Color

White

Montaj Tipi

Surface Mount, Right Angle

Locking Feature

Flip Lock

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-40°C~85°C

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Flat Flex Type

FPC

Sıra Sayısı

1

Flammability Rating

UL94 V-0

Halogen Free

Low Halogen

Material Flammability Rating

UL94 V-0, UL94 HB

Orientation

Right Angle

Ffc Fcb Thickness

0.20mm

Din Conformance

NO

Depth

2.85mm
