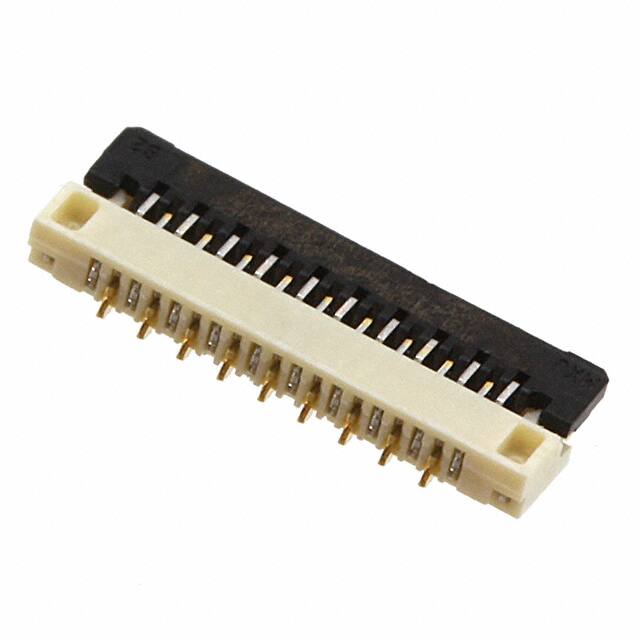

503566-1900

Teknik Özellikler

Stackable

No

Montaj Tipi

Surface Mount, Right Angle

Housing Color

White

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Elv

Compliant

ECCN Kodu

EAR99

Locking Feature

Flip Lock

Kurşunsuz Kodu

yes

Insulator Color

NATURAL

Çalışma Sıcaklığı

-40°C~85°C

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flat Flex Type

FPC

Height Above Board

0.037 0.95mm

Sıra Sayısı

1

Ambalaj

Cut Tape (CT)

Halogen Free

Low Halogen

Flammability Rating

UL94 V-0

Uzunluk

7.35mm

Material Flammability Rating

UL94 V-0, UL94 HB

Orientation

Right Angle

Ffc Fcb Thickness

0.20mm

Depth

2.85mm

Seri

Easy-On 503566

Contact Pattern

RECTANGULAR

Akım Değeri

200mA

Number Of Contacts

19

Pitch

0.012 0.30mm

Cable End Type

Tabbed

Actuatorcolor

Black

Material

Bronze

Terminal

Solder

Current Rating Amps

0.2A

Reference Standard

UL

Nominal Gerilim

50V

Contact Location

Bottom

RoHS Durumu

ROHS3 Compliant

Contact Materials

Phosphor Bronze

Özellikler

Solder Retention

Mounting Option1

LOCKING
