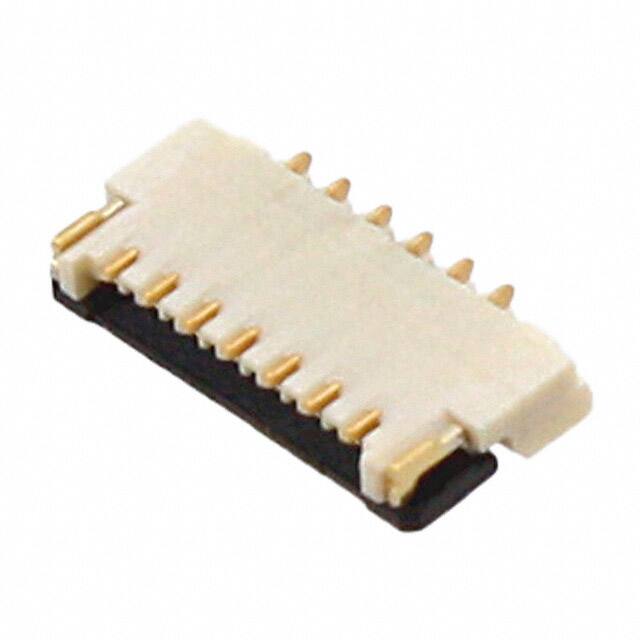

503566-1300

Teknik Özellikler

Montaj Tipi

Surface Mount, Right Angle

Housing Color

White

Stackable

No

ECCN Kodu

EAR99

Elv

Compliant

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Kurşunsuz Kodu

yes

Locking Feature

Flip Lock

Insulator Color

NATURAL

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Çalışma Sıcaklığı

-40°C~85°C

Flat Flex Type

FPC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Height Above Board

0.037 0.95mm

Ambalaj

Cut Tape (CT)

Sıra Sayısı

1

Halogen Free

Low Halogen

Flammability Rating

UL94 V-0

Uzunluk

5.55mm

Ffc Fcb Thickness

0.20mm

Orientation

Right Angle

Material Flammability Rating

UL94 V-0, UL94 HB

Depth

2.85mm

Seri

Easy-On 503566

Akım Değeri

200mA

Number Of Contacts

13

Material

Bronze

Actuatorcolor

Black

Cable End Type

Tabbed

Pitch

0.012 0.30mm

Current Rating Amps

0.2A

Terminal

Solder

Reference Standard

UL

Contact Location

Bottom

Nominal Gerilim

50V

Özellikler

Solder Retention

Contact Materials

Phosphor Bronze

RoHS Durumu

RoHS Compliant

Parça Durumu

Obsolete

Yayın Yılı

2011
