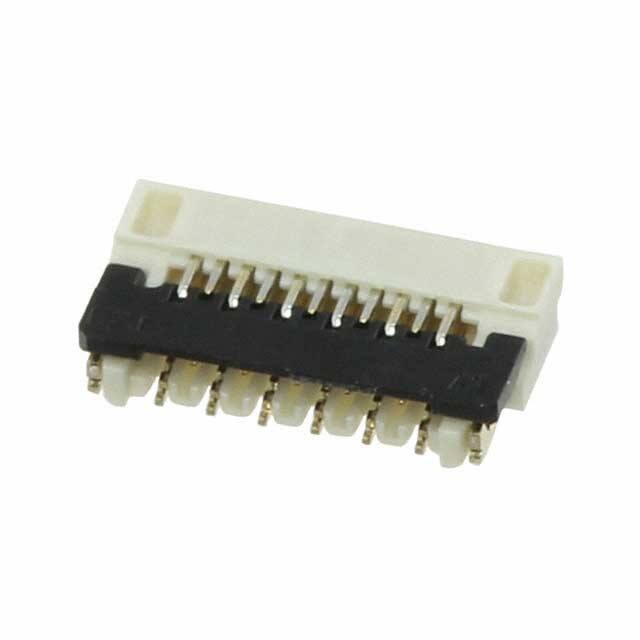

5035661100

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flat Flex Type

FPC

Çalışma Sıcaklığı

-40°C~85°C

Pozisyon Sayısı

11

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Insulator Color

NATURAL

Kurşunsuz Kodu

yes

Locking Feature

Flip Lock

Actuator Material

Polyamide (PA), Nylon, Glass Filled

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount, Right Angle

Housing Color

White

Material Flammability Rating

UL94 V-0, UL94 HB

Ffc Fcb Thickness

0.20mm

Total Number Of Contacts

11

Sıra Sayısı

1

Ambalaj

Tape & Reel (TR)

Height Above Board

0.037 0.95mm

Nominal Gerilim

50V

Reference Standard

UL

Terminal

Solder

Current Rating Amps

0.2A

Cable End Type

Tabbed

Pitch

0.012 0.30mm

Actuatorcolor

Black

HTS Kodu

8536.69.40.51

Contact Pattern

RECTANGULAR

Seri

Easy-On 503566

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Mating Cycles

10

Reliability

COMMERCIAL

Mounting Option1

LOCKING

Parça Durumu

Obsolete

Yayın Yılı

2013

Contact Materials

Phosphor Bronze

RoHS Durumu

ROHS3 Compliant

Özellikler

Solder Retention
