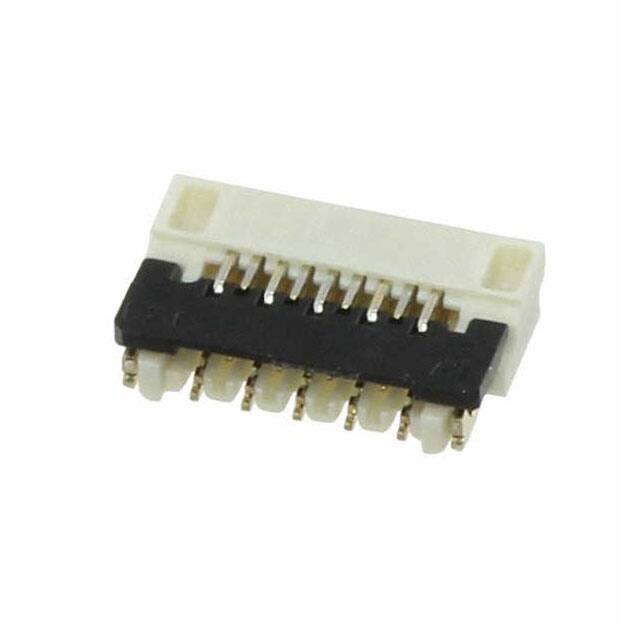

5035660900

Teknik Özellikler

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Montaj Tipi

Surface Mount, Right Angle

Housing Color

White

Kurşunsuz Kodu

yes

Locking Feature

Flip Lock

Pozisyon Sayısı

9

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Çalışma Sıcaklığı

-40°C~85°C

Flat Flex Type

FPC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Sıra Sayısı

1

Height Above Board

0.037 0.95mm

Filter Feature

NO

Total Number Of Contacts

9

Ffc Fcb Thickness

0.20mm

Material Flammability Rating

UL94 V-0, UL94 HB

Din Conformance

NO

Seri

Easy-On 503566

Current Rating Amps

0.2A

Terminal

Solder

Mixed Contacts

NO

Actuatorcolor

Black

Contact Gender

FEMALE

Cable End Type

Tabbed

Pitch

0.012 0.30mm

Option

GENERAL PURPOSE

Nominal Gerilim

50V

Yayın Yılı

2014

Parça Durumu

Obsolete

Mil Conformance

NO

Özellikler

Solder Retention

Contact Materials

Phosphor Bronze

RoHS Durumu

ROHS3 Compliant

Contact Finish

Gold

Iec Conformance

NO

Mating Cycles

10

Fabrika Tedarik Süresi

8 Weeks
