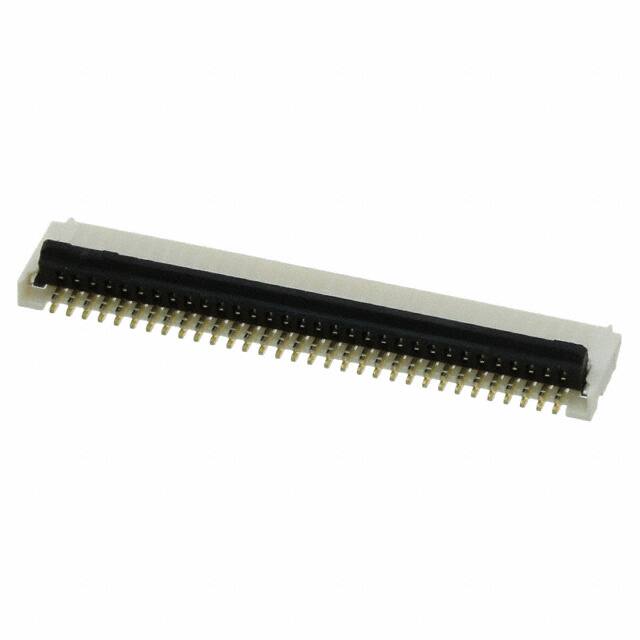

5034803200

Teknik Özellikler

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Cable End Type

Straight, Tapered

Sıra Sayısı

1

Fabrika Tedarik Süresi

10 Weeks

Board Mounting Option

FITTING NAIL

Ffc Fcb Thickness

0.30mm

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Locking Feature

Flip Lock, Backlock

Mating Cycles

10

Number Of Pcb Rows

1

Pozisyon Sayısı

32

Body Depth

0.142 inch

Contact Pattern

RECTANGULAR

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness

3.94μin 0.10μm

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Yayın Yılı

2015

Seri

BackFlip, Easy-On 503480

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Çalışma Sıcaklığı

-40°C~85°C

Dielectric Withstanding Voltage

200VAC V

Actuatorcolor

Black

Mounting Option1

LOCKING

Contact Style

BELLOWED TYPE

RoHS Durumu

ROHS3 Compliant

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Body Breadth

0.039 inch

Pitch

0.020 0.50mm

Material Flammability Rating

UL94 V-0, UL94 HB

Flat Flex Type

FFC, FPC

Body Length Or Diameter

0.697 inch

Total Number Of Contacts

32

Kurşunsuz Kodu

yes

Özellikler

Solder Retention

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Reliability

COMMERCIAL
