Adet bazlı fiyat
- 1+ adet$1.63
- 10+ adet$1.53
- 100+ adet$1.45
- 500+ adet$1.37
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği

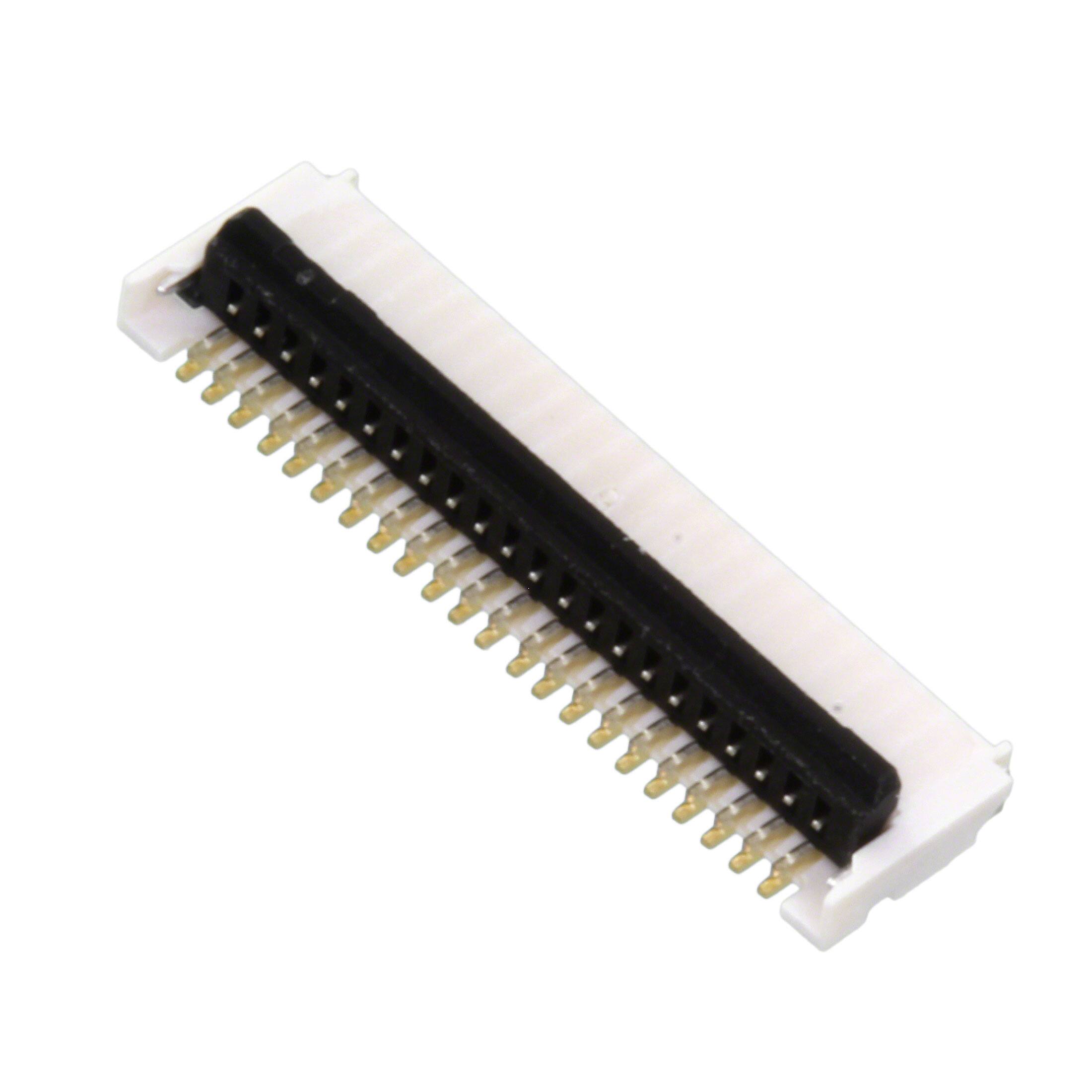

Teknik Özellikler
- Mounting Option1
- LOCKING
- Contact Style
- BELLOWED TYPE
- Actuatorcolor
- Black
- Yayın Yılı
- 2012
- Seri
- BackFlip, Easy-On 503480
- Contact Finish
- Gold
- Montaj Tipi
- Surface Mount, Right Angle
- Çalışma Sıcaklığı
- -40°C~85°C
- Housing Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Mating Cycles
- 10
- Contact Finish Thickness
- 3.94μin 0.10μm
- Contact Pattern
- RECTANGULAR
- Body Depth
- 0.142 inch
- Pozisyon Sayısı
- 22
- Number Of Pcb Rows
- 1
- Ambalaj
- Tape & Reel (TR)
- Sıra Sayısı
- 1
- Cable End Type
- Straight, Tapered
- Terminal
- Solder
- Pcb Contact Pattern
- RECTANGULAR
- Connector Type
- FFC/FPC CONNECTOR
- Ffc Fcb Thickness
- 0.30mm
- HTS Kodu
- 8536.69.40.51
- Locking Feature
- Flip Lock, Backlock
- Current Rating Amps
- 0.5A
- Fabrika Tedarik Süresi
- 10 Weeks
- Height Above Board
- 0.039 1.00mm
- Reliability
- COMMERCIAL
- Contact Materials
- Phosphor Bronze
- Parça Durumu
- Active
- Nominal Gerilim
- 50V
- Housing Color
- White
- Özellikler
- Solder Retention
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Flat Flex Type
- FFC, FPC
- Material Flammability Rating
- UL94 V-0, UL94 HB
- Pitch
- 0.020 0.50mm
- Total Number Of Contacts
- 22
- Body Length Or Diameter
- 0.5 inch
- Kurşunsuz Kodu
- yes
