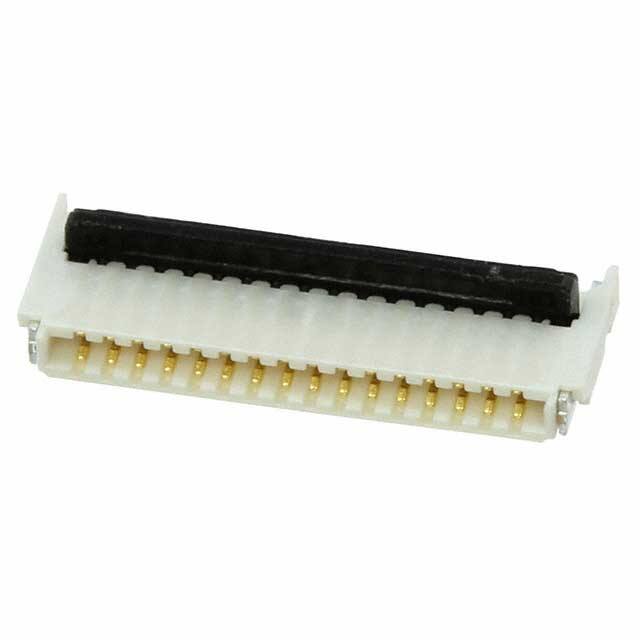

5034801600

Teknik Özellikler

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Din Conformance

NO

Çalışma Sıcaklığı

-40°C~85°C

Dielectric Withstanding Voltage

200VAC V

Contact Finish

Gold

Yayın Yılı

2013

Seri

BackFlip, Easy-On 503480

Actuatorcolor

Black

Contact Style

BELLOWED TYPE

Mil Conformance

NO

Fabrika Tedarik Süresi

11 Weeks

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Locking Feature

Flip Lock, Backlock

Pcb Contact Pattern

RECTANGULAR

Terminal

Solder

Filter Feature

NO

Option

GENERAL PURPOSE

Cable End Type

Straight, Tapered

Sıra Sayısı

1

Number Of Pcb Rows

1

Contact Pattern

RECTANGULAR

Insulator Color

NATURAL

JESD-609 Kodu

e4

Mating Cycles

10

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

50V

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Height Above Board

0.039 1.00mm

Body Breadth

0.039 inch

Total Number Of Contacts

16

Kurşunsuz Kodu

yes

Pitch

0.020 0.50mm

Montaj Tipi

Surface Mount, Right Angle

Mounting Option1

LOCKING

Additional Feature

EASY-ON, BACKFLIP

Ffc Fcb Thickness

0.30mm

Body Depth

0.142 inch

Pozisyon Sayısı

16
