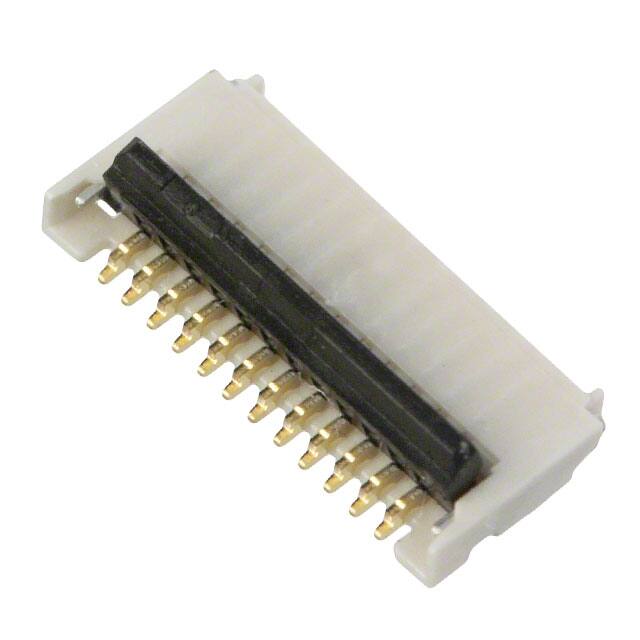

5034801200

Teknik Özellikler

Insulation Resistance

50000000Ohm

Parça Durumu

Active

Housing Color

White

Özellikler

Solder Retention

Reference Standard

UL

Flat Flex Type

FFC, FPC

Material Flammability Rating

UL94 V-0, UL94 HB

Body Length Or Diameter

0.303 inch

Contact Gender

FEMALE

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Additional Feature

POLARIZED

Mounting Option1

LOCKING

Montaj Tipi

Surface Mount, Right Angle

Mixed Contacts

NO

Contact Finish Thickness

3.94μin 0.10μm

Body Depth

0.142 inch

Pozisyon Sayısı

12

Ambalaj

Tape & Reel (TR)

Ffc Fcb Thickness

0.30mm

Board Mounting Option

FITTING NAIL

Height Above Board

0.039 1.00mm

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.020 0.50mm

Total Number Of Contacts

12

Kurşunsuz Kodu

yes

Body Breadth

0.039 inch

Mil Conformance

NO

Contact Style

BELLOWED TYPE

Actuatorcolor

Black

Yayın Yılı

2014

Seri

BackFlip, Easy-On 503480

Contact Finish

Gold

Çalışma Sıcaklığı

-40°C~85°C

Dielectric Withstanding Voltage

200VAC V

Din Conformance

NO
