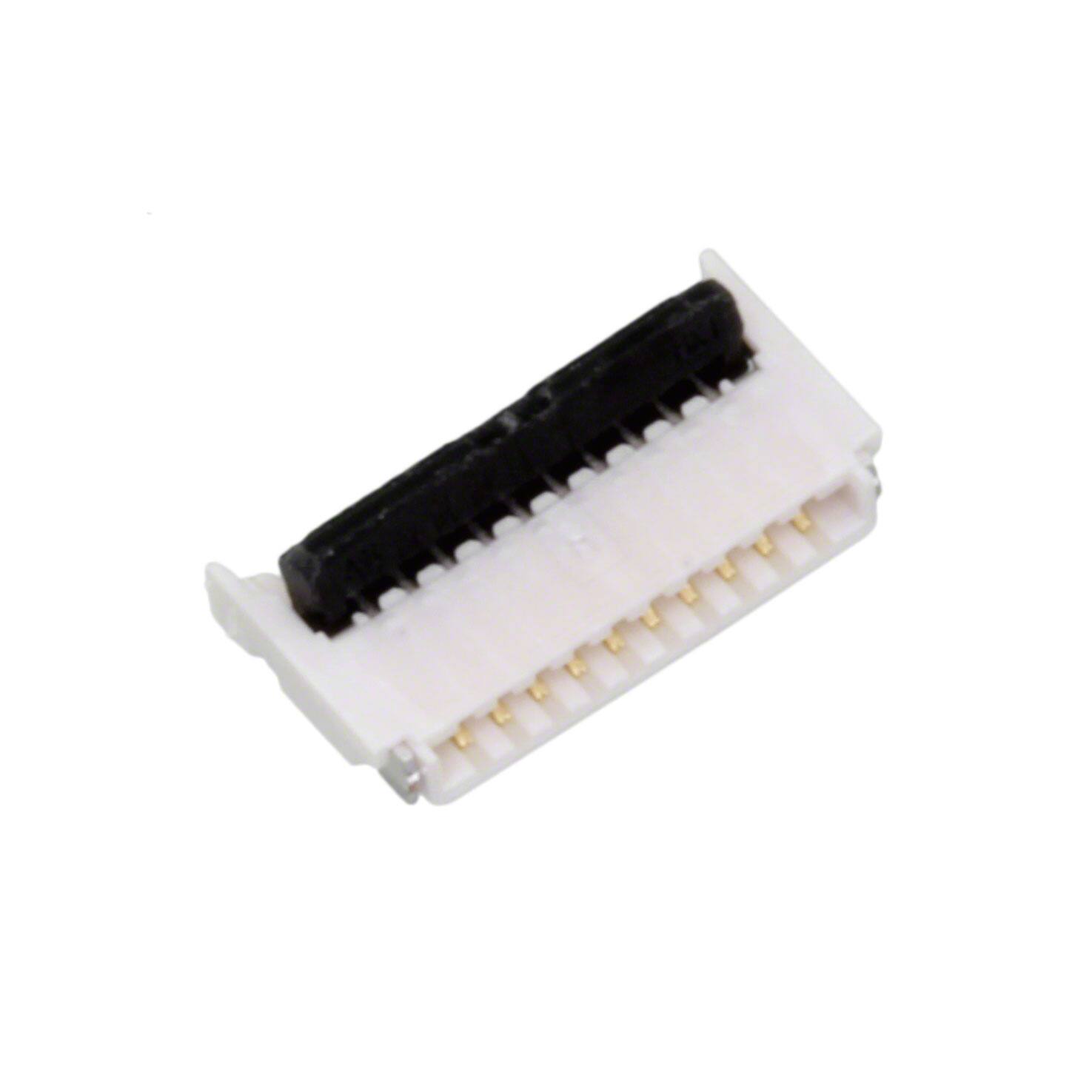

5034801000

Teknik Özellikler

JESD-609 Kodu

e4

Contact Pattern

RECTANGULAR

Number Of Pcb Rows

1

Filter Feature

NO

Option

GENERAL PURPOSE

Sıra Sayısı

1

Cable End Type

Straight, Tapered

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Connector Type

FFC/FPC CONNECTOR

Current Rating Amps

0.5A

Locking Feature

Flip Lock, Backlock

Fabrika Tedarik Süresi

11 Weeks

Mil Conformance

NO

Contact Style

BELLOWED TYPE

Actuatorcolor

Black

Yayın Yılı

2012

Seri

BackFlip, Easy-On 503480

Contact Finish

Gold

Çalışma Sıcaklığı

-40°C~85°C

Dielectric Withstanding Voltage

200VAC V

Din Conformance

NO

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Pitch

0.020 0.50mm

Total Number Of Contacts

10

Kurşunsuz Kodu

yes

Body Breadth

0.039 inch

Height Above Board

0.039 1.00mm

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze

Nominal Gerilim

50V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Contact Finish Thickness

3.94μin 0.10μm

Pozisyon Sayısı

10

Body Depth

0.142 inch

Ambalaj

Tape & Reel (TR)

Ffc Fcb Thickness

0.30mm

Board Mounting Option

FITTING NAIL

Additional Feature

BACKFLIP, EASY-ON, POLARIZED
