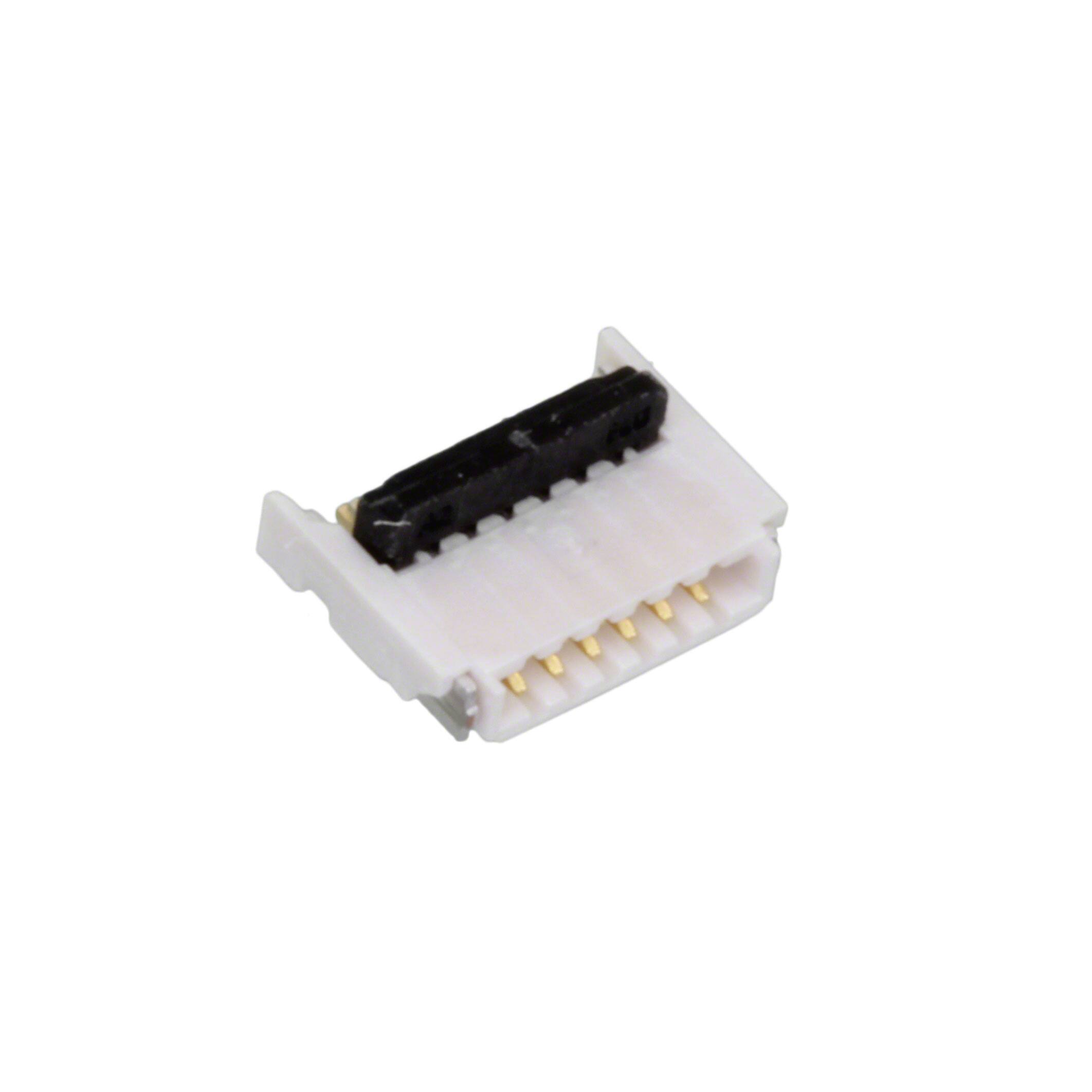

5034800600

Teknik Özellikler

JESD-609 Kodu

e4

Mating Cycles

10

Number Of Pcb Rows

1

Pozisyon Sayısı

6

Body Depth

0.142 inch

Contact Pattern

RECTANGULAR

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness

3.94μin 0.10μm

Terminal

Solder

Pcb Contact Pattern

RECTANGULAR

Cable End Type

Straight, Tapered

Sıra Sayısı

1

Fabrika Tedarik Süresi

11 Weeks

Board Mounting Option

FITTING NAIL

Connector Type

FFC/FPC CONNECTOR

Ffc Fcb Thickness

0.30mm

Locking Feature

Flip Lock, Backlock

Current Rating Amps

0.5A

Actuatorcolor

Black

Mounting Option1

LOCKING

Contact Style

BELLOWED TYPE

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Yayın Yılı

2013

Seri

BackFlip, Easy-On 503480

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Çalışma Sıcaklığı

-40°C~85°C

Dielectric Withstanding Voltage

200VAC V

Material Flammability Rating

UL94 V-0, UL94 HB

Pitch

0.020 0.50mm

Flat Flex Type

FFC, FPC

Total Number Of Contacts

6

Body Length Or Diameter

0.185 inch

Kurşunsuz Kodu

yes

RoHS Durumu

ROHS3 Compliant

Actuator Material

Polyamide (PA), Nylon, Glass Filled

ECCN Kodu

EAR99

Body Breadth

0.039 inch

Reliability

COMMERCIAL

Contact Materials

Phosphor Bronze
