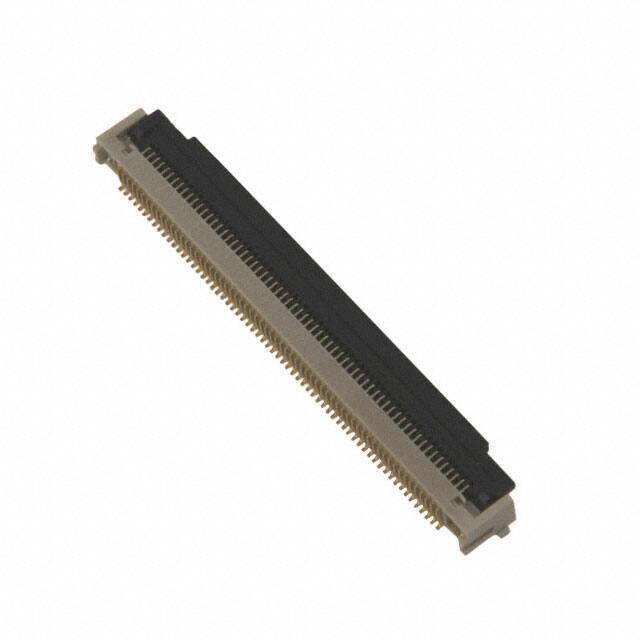

5027906491

Teknik Özellikler

Pozisyon Sayısı

64

Mounting Option1

LOCKING

Housing Color

Beige

Contact Resistance

40mOhm

Pitch

0.020 0.50mm

Ambalaj

Tape & Reel (TR)

RoHS Durumu

ROHS3 Compliant

Contact Finish

Gold

Contact Finish Thickness

2.00μin 0.051μm

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Body Depth

0.154 inch

Locking Feature

Flip Lock

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled

Current Rating Amps

0.5A

Total Number Of Contacts

64

Actuatorcolor

Black

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Height Above Board

0.098 2.50mm

Ffc Fcb Thickness

0.30mm

Nominal Gerilim

50V

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

125VAC V

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Cable End Type

Tabbed

Parça Durumu

Active

Seri

Easy-On 502790

Terminal

Solder

Flat Flex Type

FPC

Contact Style

BELLOWED TYPE

Montaj Tipi

Surface Mount, Right Angle

Plating Thickness

2μin

Contact Pattern

RECTANGULAR

Body Length Or Diameter

1.445 inch

Body Breadth

0.098 inch

Insulation Resistance

50000000Ohm

Fabrika Tedarik Süresi

6 Weeks

HTS Kodu

8536.69.40.51

Özellikler

Double Contact, Solder Retention, Zero Insertion Force (ZIF)
