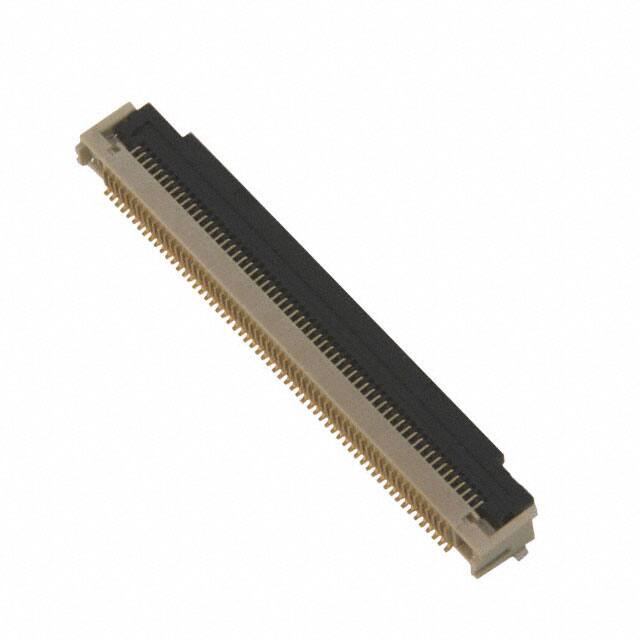

5027906091

Teknik Özellikler

Contact Resistance

40mOhm

Housing Color

Beige

Mounting Option1

LOCKING

Pozisyon Sayısı

60

Ambalaj

Tape & Reel (TR)

Pitch

0.020 0.50mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness

2.00μin 0.051μm

Contact Finish

Gold

Reliability

COMMERCIAL

Material Flammability Rating

UL94 V-0

Body Depth

0.154 inch

Current Rating Amps

0.5A

Locking Feature

Flip Lock

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled

Actuatorcolor

Black

Total Number Of Contacts

60

Sıra Sayısı

1

Kurşunsuz Kodu

yes

Height Above Board

0.098 2.50mm

Ffc Fcb Thickness

0.30mm

Nominal Gerilim

50V

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

125VAC V

Cable End Type

Tabbed

Parça Durumu

Active

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Terminal

Solder

Seri

Easy-On 502790

Flat Flex Type

FPC

Montaj Tipi

Surface Mount, Right Angle

Plating Thickness

2μin

Contact Style

BELLOWED TYPE

Contact Pattern

RECTANGULAR

Body Length Or Diameter

1.366 inch

Insulation Resistance

50000000Ohm

Fabrika Tedarik Süresi

6 Weeks

HTS Kodu

8536.69.40.51

Body Breadth

0.098 inch

Özellikler

Double Contact, Solder Retention, Zero Insertion Force (ZIF)
