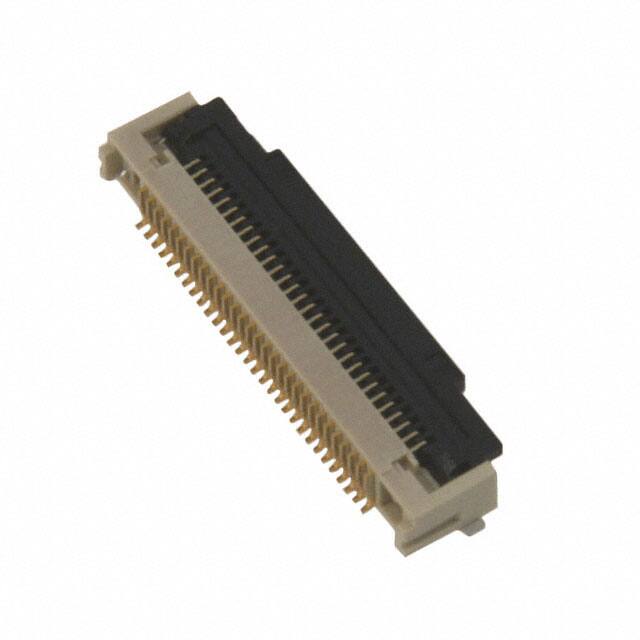

5027903091

Teknik Özellikler

Sıra Sayısı

1

Height Above Board

0.098 2.50mm

Kurşunsuz Kodu

yes

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled

Locking Feature

Flip Lock

Current Rating Amps

0.5A

Material Flammability Rating

UL94 V-0

Body Depth

0.154 inch

Total Number Of Contacts

30

Actuatorcolor

Black

Contact Finish

Gold

Contact Finish Thickness

2.00μin 0.051μm

Pitch

0.020 0.50mm

Ambalaj

Tape & Reel (TR)

Pozisyon Sayısı

30

Mounting Option1

LOCKING

Contact Resistance

40mOhm

Housing Color

Beige

RoHS Durumu

ROHS3 Compliant

Durability

20 Cycles

Çalışma Sıcaklığı

-20°C~85°C

Insertion Forcemax

ZIF N

Board Mounting Option

FITTING NAIL

Withdrawl Forcemin

ZIF N

Additional Feature

ROHS COMPLIANT

Contact Materials

Phosphor Bronze

Number Of Pcb Rows

1

JESD-609 Kodu

e4

Yayın Yılı

2015

Body Breadth

0.098 inch

HTS Kodu

8536.69.40.51

Fabrika Tedarik Süresi

6 Weeks

Insulation Resistance

50000000Ohm

Body Length Or Diameter

0.776 inch

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL, CSA

Özellikler

Double Contact, Solder Retention, Zero Insertion Force (ZIF)

Flat Flex Type

FPC

Seri

Easy-On 502790
