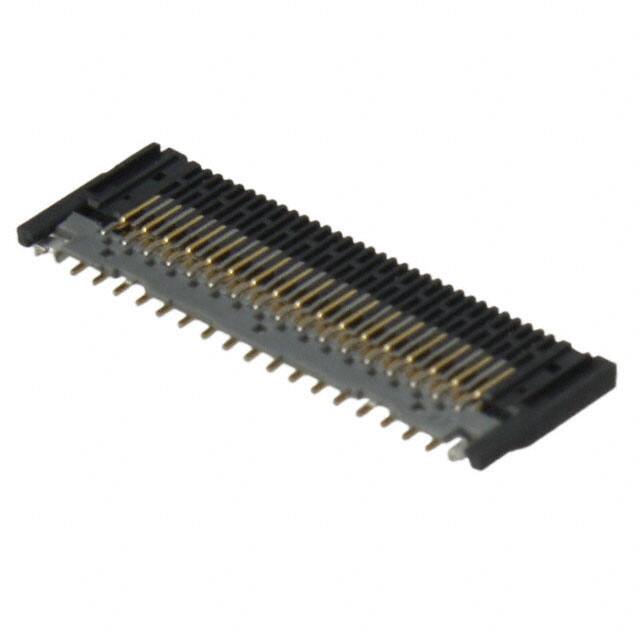

5027613300

Teknik Özellikler

Seri

Easy-On 502761

Terminal

Solder

Contact Finish

Gold

Flat Flex Type

FPC

Contact Style

BELLOWED TYPE

Reliability

COMMERCIAL

Pcb Contact Row Spacing

3.8608 mm

Montaj Tipi

Surface Mount, Right Angle

Contact Pattern

RECTANGULAR

Mounting Option1

LOCKING

Pozisyon Sayısı

33

Contact Resistance

80mOhm

Housing Color

Black

Ffc Fcb Thickness

0.12mm

Pitch

0.012 0.30mm

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

50V

Pcb Contact Pattern

STAGGERED

RoHS Durumu

ROHS3 Compliant

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Parça Durumu

Active

Cable End Type

Tabbed

REACH Uyumluluk Kodu

unknown

Additional Feature

EMBOSSED TAPE PACKAGING

Board Mounting Option

FITTING NAIL

Çalışma Sıcaklığı

-40°C~85°C

Sıra Sayısı

1

Mating Cycles

10

Height Above Board

0.024 0.61mm

Number Of Pcb Rows

2

Contact Materials

Copper Alloy

Yayın Yılı

2012

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

0.496 inch

Body Depth

0.172 inch

Body Breadth

0.024 inch

Locking Feature

Flip Lock

Actuator Material

Liquid Crystal Polymer (LCP), Glass Filled

Insulation Resistance

50000000Ohm

Current Rating Amps

0.2A
