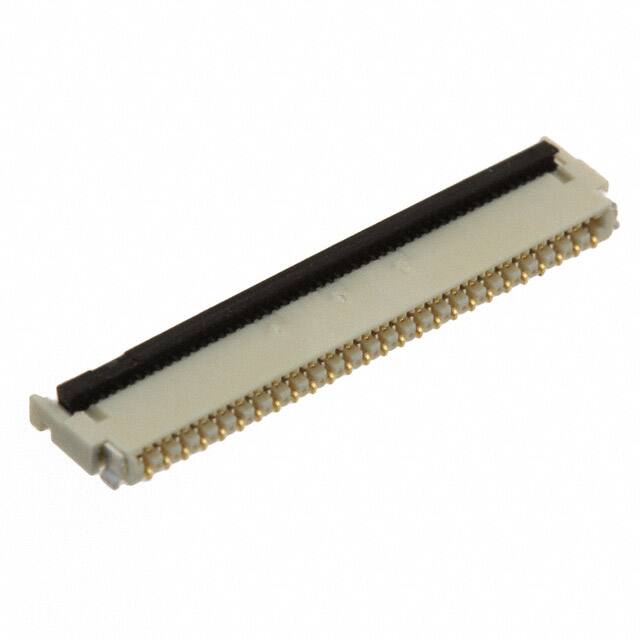

5025985193

Teknik Özellikler

Parça Durumu

Active

Cable End Type

Tapered

RoHS Durumu

ROHS3 Compliant

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Nominal Gerilim

50V

Pcb Contact Pattern

STAGGERED

Ambalaj

Tape & Reel (TR)

Ffc Fcb Thickness

0.20mm

Pitch

0.012 0.30mm

Insulator Color

NATURAL

Contact Resistance

60mOhm

Housing Color

White

Mounting Option1

LOCKING

Pozisyon Sayısı

51

Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount, Right Angle

Plating Thickness

3.93μin

Contact Style

SQ PIN-SKT

Reliability

COMMERCIAL

Contact Finish Thickness

3.94μin 0.10μm

Contact Finish

Gold

Flat Flex Type

FPC

Terminal

Solder

Seri

BackFlip, Easy-On 502598

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuatorcolor

Black

Total Number Of Contacts

51

Özellikler

Solder Retention

Insulation Resistance

50000000Ohm

Current Rating Amps

0.2A

Fabrika Tedarik Süresi

13 Weeks

Body Breadth

0.045 inch

Locking Feature

Flip Lock, Backlock

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Material Flammability Rating

UL94 V-0, UL94 HB

Body Length Or Diameter

0.685 inch

Body Depth

0.15 inch

Yayın Yılı

2014

Height Above Board

0.045 1.14mm
