Teknik Özellikler
- Terminal
- Solder
- Seri

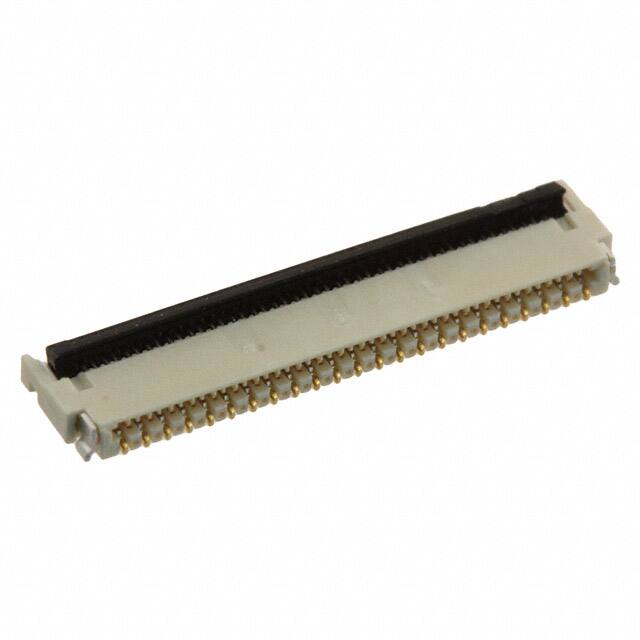

- BackFlip, Easy-On 502598
- Contact Finish Thickness
- 3.94μin 0.10μm
- Contact Finish
- Gold
- Flat Flex Type
- FPC
- Montaj Tipi
- Surface Mount, Right Angle
- Housing Color
- White
- Pozisyon Sayısı
- 45
- Ambalaj
- Tape & Reel (TR)
- Ffc Fcb Thickness
- 0.20mm
- Pitch
- 0.012 0.30mm
- Nominal Gerilim
- 50V
- REACH Uyumluluk Kodu
- unknown
- Cable End Type
- Tapered
- Parça Durumu
- Obsolete
- RoHS Durumu
- ROHS3 Compliant
- Housing Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Çalışma Sıcaklığı
- -40°C~85°C
- Mating Cycles
- 10
- Yayın Yılı
- 2012
- Height Above Board
- 0.045 1.14mm
- Contact Materials
- Copper Alloy
- Material Flammability Rating
- UL94 V-0, UL94 HB
- Current Rating Amps
- 0.2A
- Locking Feature
- Flip Lock, Backlock
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Actuatorcolor
- Black
- Özellikler
- Solder Retention
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
