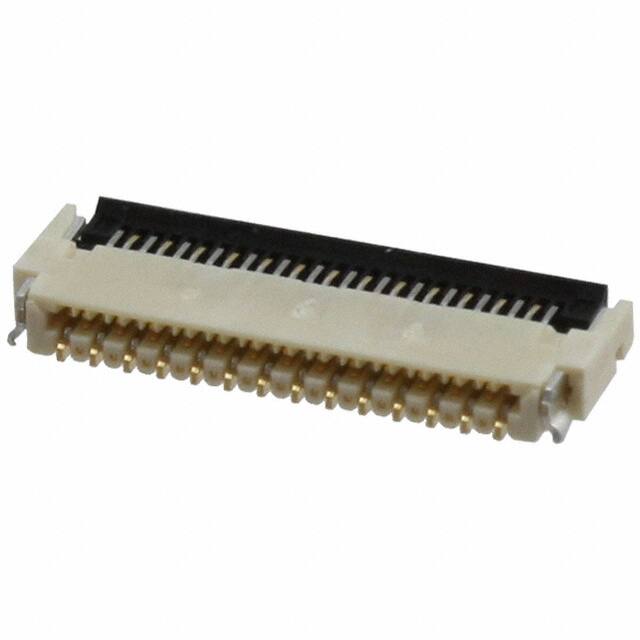

5025982793

Teknik Özellikler

Pozisyon Sayısı

27

Mounting Option1

LOCKING

Insulator Color

NATURAL

Housing Color

White

Contact Resistance

60mOhm

Ffc Fcb Thickness

0.20mm

Pitch

0.012 0.30mm

Ambalaj

Tape & Reel (TR)

Nominal Gerilim

50V

Pcb Contact Pattern

STAGGERED

RoHS Durumu

ROHS3 Compliant

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Parça Durumu

Active

Cable End Type

Tapered

Seri

BackFlip, Easy-On 502598

Terminal

Solder

Contact Finish

Gold

Flat Flex Type

FPC

Contact Finish Thickness

3.94μin 0.10μm

Reliability

COMMERCIAL

Contact Style

SQ PIN-SKT

Montaj Tipi

Surface Mount, Right Angle

Plating Thickness

3.93μin

Contact Pattern

RECTANGULAR

Body Depth

0.15 inch

Body Length Or Diameter

0.402 inch

Material Flammability Rating

UL94 V-0, UL94 HB

Locking Feature

Flip Lock, Backlock

Body Breadth

0.045 inch

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Insulation Resistance

50000000Ohm

Current Rating Amps

0.2A

Fabrika Tedarik Süresi

13 Weeks

Total Number Of Contacts

27

Özellikler

Solder Retention

Actuatorcolor

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Çalışma Sıcaklığı

-40°C~85°C

Sıra Sayısı

1
