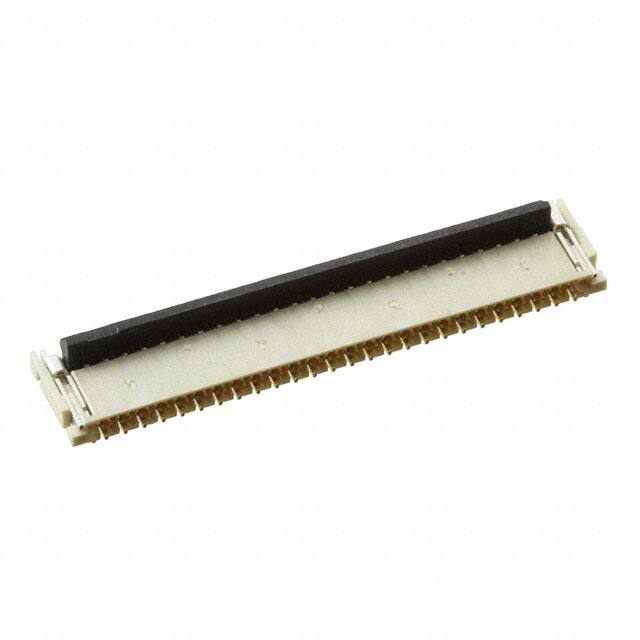

5022505191

Teknik Özellikler

Current Rating Amps

0.2A

Contact Materials

Copper Alloy

Additional Feature

BACKFLIP, EASY-ON, POLARIZED

Sıra Sayısı

1

Flat Flex Type

FPC

Yayın Yılı

2013

Fabrika Tedarik Süresi

9 Weeks

Material Flammability Rating

UL94 V-0

Mating Cycles

10

Ffc Fcb Thickness

0.20mm

Board Mounting Option

FITTING NAIL

Height Above Board

0.035 0.88mm

Parça Durumu

Last Time Buy

Pcb Contact Pattern

STAGGERED

Locking Feature

Flip Lock, Backlock

Montaj Tipi

Surface Mount, Right Angle

Din Conformance

NO

Iec Conformance

NO

Terminal

Solder

Seri

BackFlip, Easy-On 502250

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Resistance

80mOhm

Mounting Option1

LOCKING

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled

Housing Color

Natural

Ambalaj

Tape & Reel (TR)

Total Number Of Contacts

51

Option

GENERAL PURPOSE

Kurşunsuz Kodu

yes

Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Insulation Resistance

50000000Ohm

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Actuatorcolor

Black

Reference Standard

UL

Cable End Type

Notched or Tabbed

Body Length Or Diameter

0.673 inch

Body Depth

0.139 inch

Contact Finish

Gold
