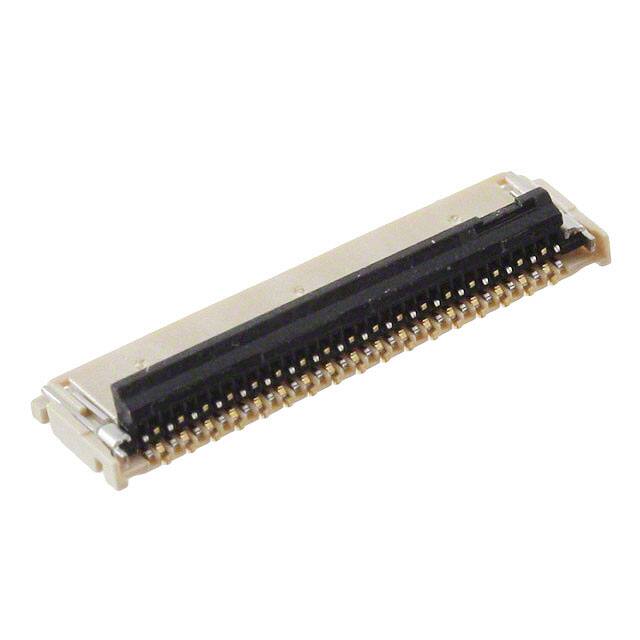

5022503591

Teknik Özellikler

Contact Finish

Gold

Body Depth

0.139 inch

Body Length Or Diameter

0.484 inch

Reference Standard

UL

Cable End Type

Notched or Tabbed

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Actuatorcolor

Black

Insulation Resistance

50000000Ohm

Mixed Contacts

NO

Contact Gender

FEMALE

Çalışma Sıcaklığı

-25°C~85°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Pitch

0.012 0.30mm

Pozisyon Sayısı

35

Number Of Pcb Rows

2

Reliability

COMMERCIAL

JESD-609 Kodu

e4

Pcb Contact Pattern

STAGGERED

Parça Durumu

Last Time Buy

Board Mounting Option

FITTING NAIL

Height Above Board

0.035 0.88mm

Mating Cycles

10

Ffc Fcb Thickness

0.20mm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

12 Weeks

Yayın Yılı

2013

Flat Flex Type

FPC

Sıra Sayısı

1

Additional Feature

BACKFLIP, EASY-ON, POLARIZED

Contact Materials

Copper Alloy

Current Rating Amps

0.2A

Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Total Number Of Contacts

35

Ambalaj

Tape & Reel (TR)

Housing Color

Natural
