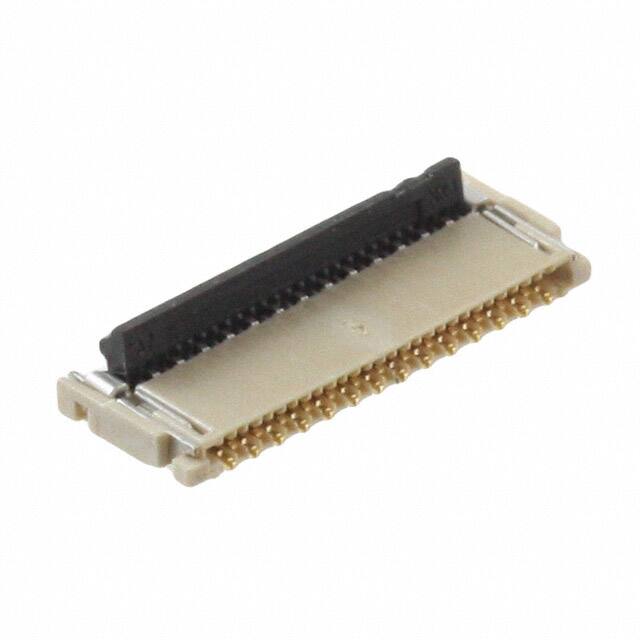

5022502791

Teknik Özellikler

Iec Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Din Conformance

NO

Locking Feature

Flip Lock, Backlock

Seri

BackFlip, Easy-On 502250

Terminal

Solder

Housing Color

Natural

Contact Resistance

80mOhm

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled

Mounting Option1

LOCKING

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Pattern

RECTANGULAR

Ambalaj

Tape & Reel (TR)

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Total Number Of Contacts

27

Sıra Sayısı

1

Additional Feature

BACKFLIP, EASY-ON, POLARIZED

Current Rating Amps

0.2A

Contact Materials

Copper Alloy

Flat Flex Type

FPC

Mating Cycles

10

Ffc Fcb Thickness

0.20mm

Board Mounting Option

FITTING NAIL

Height Above Board

0.035 0.88mm

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

6 Weeks

Yayın Yılı

2016

Parça Durumu

Last Time Buy

Pcb Contact Pattern

STAGGERED

JESD-609 Kodu

e4

Pozisyon Sayısı

27

Number Of Pcb Rows

2

Reliability

COMMERCIAL

Pitch

0.012 0.30mm

Çalışma Sıcaklığı

-25°C~85°C

Contact Gender

FEMALE

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Breadth

0.035 inch
