Adet bazlı fiyat
- 1+ adet$1.88
- 10+ adet$1.78
- 100+ adet$1.68
- 500+ adet$1.58
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler

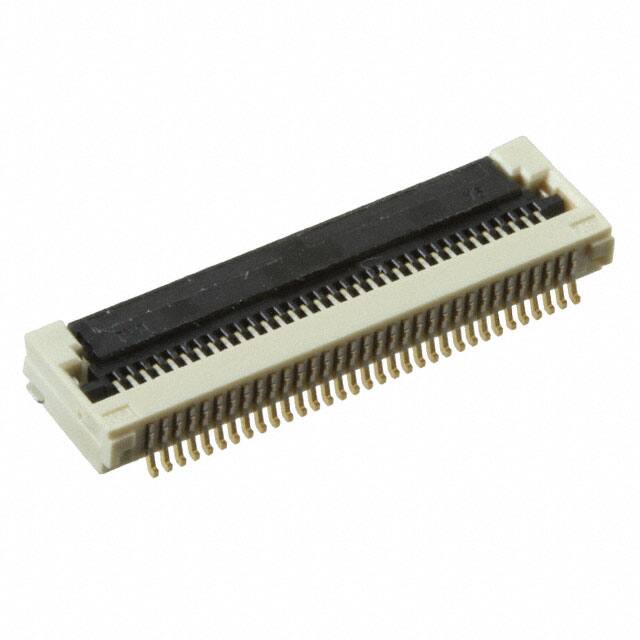

- Pcb Contact Pattern
- RECTANGULAR
- Insulator Color
- NATURAL
- Parça Durumu
- Active
- Material Flammability Rating
- UL94 V-0
- Height Above Board
- 0.092 2.33mm
- Board Mounting Option
- FITTING NAIL
- Ffc Fcb Thickness
- 0.30mm
- Mating Cycles
- 20
- Yayın Yılı
- 2010
- Fabrika Tedarik Süresi
- 17 Weeks
- Flat Flex Type
- FFC
- ECCN Kodu
- EAR99
- Mounting Option2
- LOCKING
- Sıra Sayısı
- 1
- Contact Materials
- Phosphor Bronze
- Current Rating Amps
- 0.4A
- Additional Feature
- EASY-ON, ZIF, POLARIZED
- Option
- GENERAL PURPOSE
- Total Number Of Contacts
- 33
- Ambalaj
- Tape & Reel (TR)
- Contact Pattern
- RECTANGULAR
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Mounting Option1
- LATCH & EJECT
- Contact Resistance
- 40mOhm
- Housing Color
- White
- Housing Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Seri
- Easy-On 502244
- Terminal
- Solder
- Iec Conformance
- NO
- Locking Feature
- Flip Lock
- Din Conformance
- NO
- Montaj Tipi
- Surface Mount, Right Angle
- Contact Finish
- Gold
- Insertion Forcemax
- ZIF N
- HTS Kodu
- 8536.69.40.51
- Body Length Or Diameter
- 0.752 inch
- Cable End Type
- Straight
- Reference Standard
- UL
- Actuatorcolor
- Black
- Nominal Gerilim
- 50V
