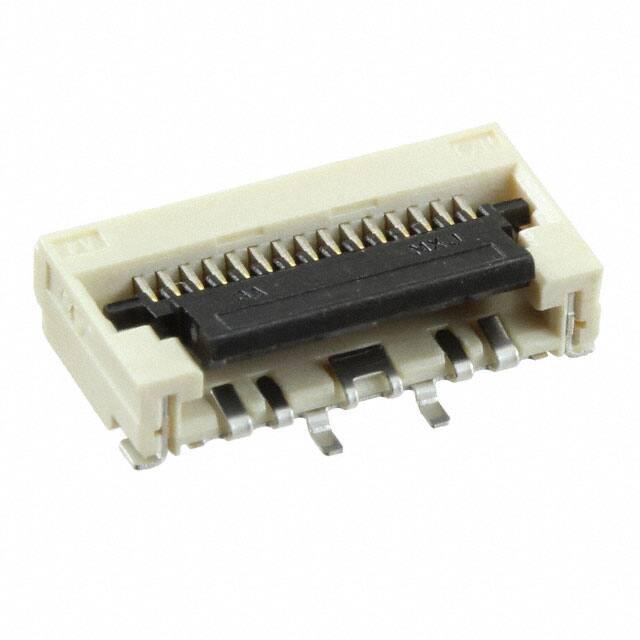

5022441530

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Height Above Board

0.092 2.33mm

Board Mounting Option

FITTING NAIL

Ffc Fcb Thickness

0.30mm

Mating Cycles

20

Fabrika Tedarik Süresi

20 Weeks

Yayın Yılı

2010

Contact Finish

Gold

Pcb Contact Pattern

RECTANGULAR

Insulator Color

NATURAL

Parça Durumu

Active

Insertion Forcemax

ZIF N

Actuatorcolor

Black

Nominal Gerilim

50V

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

1

Contact Materials

Phosphor Bronze

Current Rating Amps

0.4A

Insulation Resistance

50000000Ohm

Additional Feature

ROHS AND ELV COMPLIANT

Flat Flex Type

FFC

Body Length Or Diameter

0.398 inch

Cable End Type

Straight

Reference Standard

UL

Mounting Option2

LOCKING

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Mounting Option1

LATCH & EJECT

Contact Resistance

40mOhm

Housing Color

White

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Pitch

0.020 0.50mm

Kurşunsuz Kodu

yes

Total Number Of Contacts

15

Ambalaj

Tape & Reel (TR)

Contact Style

BELLOWED TYPE

Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-25°C~85°C

Body Breadth

0.092 inch

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Nem Hassasiyeti (MSL)

1 (Unlimited)
