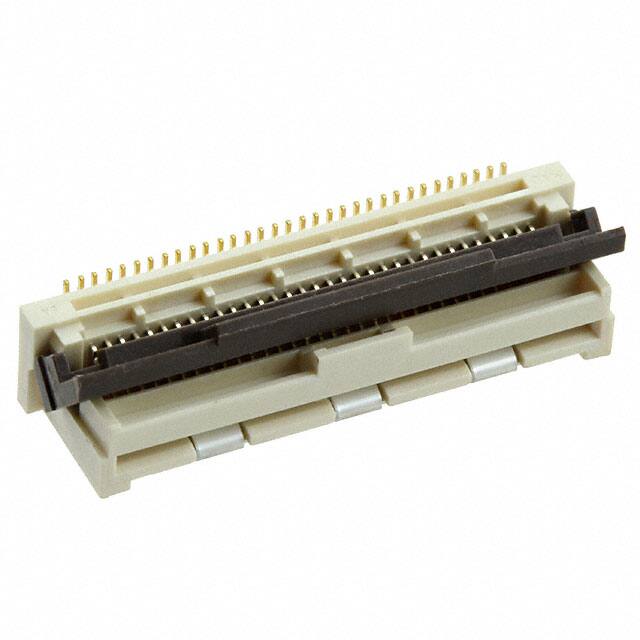

5022313300

Teknik Özellikler

Pitch

0.020 0.50mm

Contact Gender

FEMALE

Çalışma Sıcaklığı

-25°C~85°C

Mil Conformance

NO

Contact Style

BELLOWED TYPE

Body Breadth

0.169 inch

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Withdrawl Forcemin

ZIF N

JESD-609 Kodu

e3

Pozisyon Sayısı

33

Number Of Pcb Rows

1

Reliability

COMMERCIAL

Body Depth

0.238 inch

Contact Finish

Gold

Insertion Forcemax

ZIF N

Plating Thickness

4μin

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

50V

Actuatorcolor

Brown

Insulation Resistance

50000000Ohm

Mixed Contacts

NO

Body Length Or Diameter

0.78 inch

Cable End Type

Straight

Reference Standard

UL

Housing Color

Natural

Mounting Option1

LATCH & EJECT

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Resistance

40mOhm

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Pattern

RECTANGULAR

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE

Total Number Of Contacts

33

Ambalaj

Tape & Reel (TR)

Iec Conformance

NO

Din Conformance

NO

Montaj Tipi

Surface Mount

Locking Feature

Flip Lock
