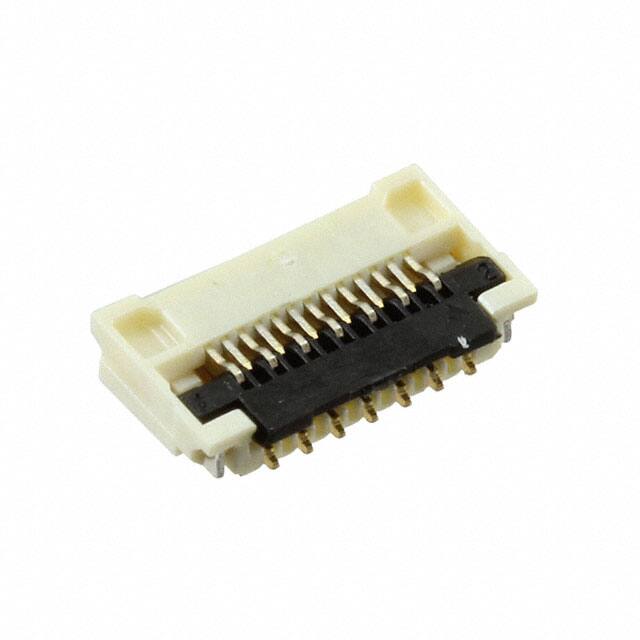

5020781360

Teknik Özellikler

Ambalaj

Tape & Reel (TR)

Number Of Pcb Rows

2

Pcb Contact Pattern

STAGGERED

Ffc Fcb Thickness

0.20mm

Contact Finish

Gold

Montaj Tipi

Surface Mount, Right Angle

Nominal Gerilim

50V

Mil Conformance

NO

Additional Feature

BOTTOM CONTACT STYLE, EASY-ON, POLARIZED

Pitch

0.010 0.25mm

Kurşunsuz Kodu

yes

Contact Gender

FEMALE

Yayın Yılı

2016

Body Length Or Diameter

0.197 inch

Option

GENERAL PURPOSE

Mixed Contacts

NO

Pozisyon Sayısı

13

HTS Kodu

8536.69.40.51

Material Flammability Rating

UL94 V-0, UL94 HB

Total Number Of Contacts

13

RoHS Durumu

ROHS3 Compliant

Contact Style

BELLOWED TYPE

Actuator Material

Polyamide (PA), Nylon

Çalışma Sıcaklığı

-20°C~85°C

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Board Mounting Option

FITTING NAIL

Insulation Resistance

50000000Ohm

Body Breadth

0.039 inch

Actuatorcolor

Black

Housing Material

Liquid Crystal Polymer (LCP)

Current Rating Amps

0.2A

Mounting Option1

LOCKING

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

10 Weeks

Housing Color

Beige

Seri

Easy-On 502078

Contact Materials

Phosphor Bronze

Parça Durumu

Obsolete

Sıra Sayısı

1
