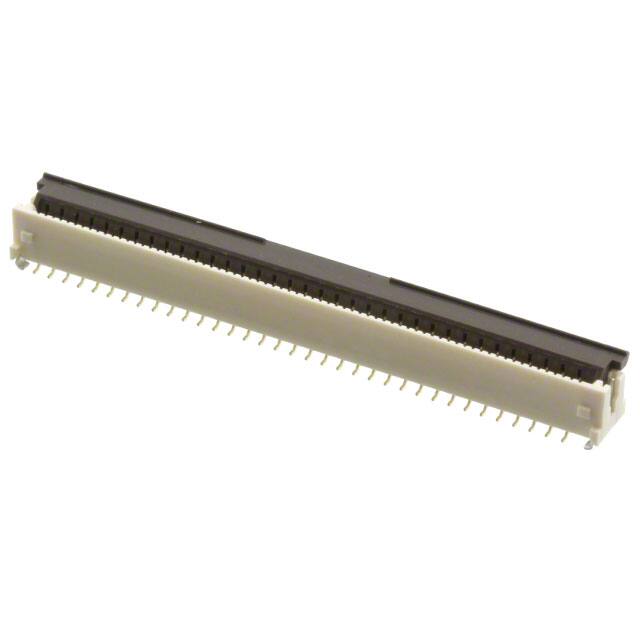

5019517010

Teknik Özellikler

Current Rating Amps

0.4A

Parça Durumu

Active

Pcb Contact Row Spacing

2.8956 mm

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

13 Weeks

Nominal Gerilim

50V

Material Flammability Rating

UL94 V-0

Locking Feature

Flip Lock

Contact Finish Thickness

3.94μin 0.10μm

Mating Cycles

20

Connector Type

FFC/FPC CONNECTOR

Pcb Contact Pattern

STAGGERED

Pozisyon Sayısı

70

Cable End Type

Straight, Tapered

Height Above Board

0.159 4.04mm

Total Number Of Contacts

70

Pitch

0.020 0.50mm

Body Depth

0.181 inch

Body Breadth

0.177 inch

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish

Gold

Actuatorcolor

Brown

Reliability

COMMERCIAL

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2015

Seri

Easy-On 501951

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-25°C~85°C

Flat Flex Type

FFC, FPC

Housing Color

White

Terminal

Solder

Contact Pattern

RECTANGULAR

Mounting Option1

LOCKING

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)
