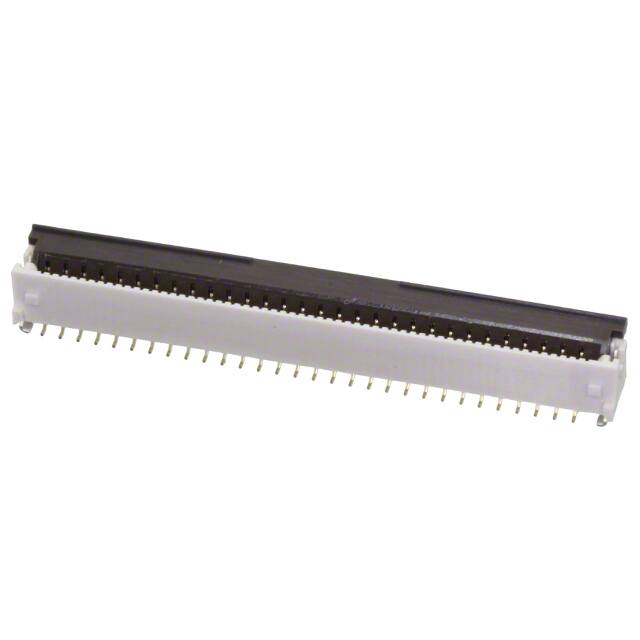

5019516010

Teknik Özellikler

Flat Flex Type

FFC, FPC

Housing Color

White

Contact Pattern

RECTANGULAR

Terminal

Solder

Mounting Option1

LOCKING

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Copper Alloy

Yayın Yılı

2012

HTS Kodu

8536.69.40.51

Seri

Easy-On 501951

Çalışma Sıcaklığı

-25°C~85°C

RoHS Durumu

ROHS3 Compliant

Contact Resistance

40mOhm

JESD-609 Kodu

e4

Insulation Resistance

50000000Ohm

Actuatorcolor

Brown

Reliability

COMMERCIAL

Ffc Fcb Thickness

0.30mm

Sıra Sayısı

1

Total Number Of Contacts

60

Height Above Board

0.159 4.04mm

Cable End Type

Straight, Tapered

Pitch

0.020 0.50mm

Contact Finish

Gold

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish Thickness

3.94μin 0.10μm

Locking Feature

Flip Lock

Mating Cycles

20

Connector Type

FFC/FPC CONNECTOR

Pozisyon Sayısı

60

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Fabrika Tedarik Süresi

18 Weeks

Nominal Gerilim

50V

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Current Rating Amps

0.4A

Parça Durumu

Active

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount
