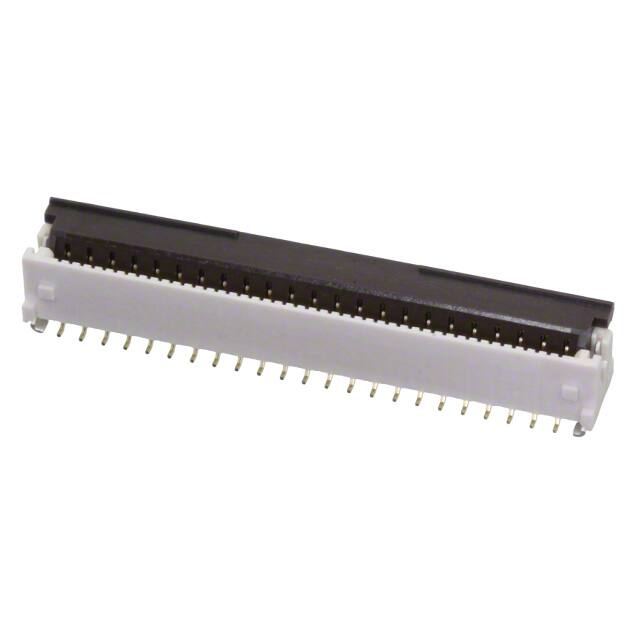

5019514510

Teknik Özellikler

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Body Breadth

0.177 inch

Contact Finish

Gold

Pitch

0.020 0.50mm

Body Depth

0.181 inch

Total Number Of Contacts

45

Height Above Board

0.159 4.04mm

Pozisyon Sayısı

45

Mating Cycles

20

Connector Type

FFC/FPC CONNECTOR

Contact Gender

FEMALE

Iec Conformance

NO

Locking Feature

Flip Lock

Option

GENERAL PURPOSE

Fabrika Tedarik Süresi

13 Weeks

Kurşunsuz Kodu

yes

Montaj Tipi

Surface Mount

Parça Durumu

Active

Current Rating Amps

0.4A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Pattern

RECTANGULAR

Flat Flex Type

FFC, FPC

Housing Color

White

Yayın Yılı

2015

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Mil Conformance

NO

Sıra Sayısı

1

Filter Feature

NO

Cable End Type

Straight, Tapered

Pcb Contact Pattern

STAGGERED

Contact Finish Thickness

3.94μin 0.10μm

Material Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Din Conformance

NO

Pcb Contact Row Spacing

2.8956 mm

Ambalaj

Tape & Reel (TR)

Reference Standard

UL

Contact Materials

Copper Alloy
