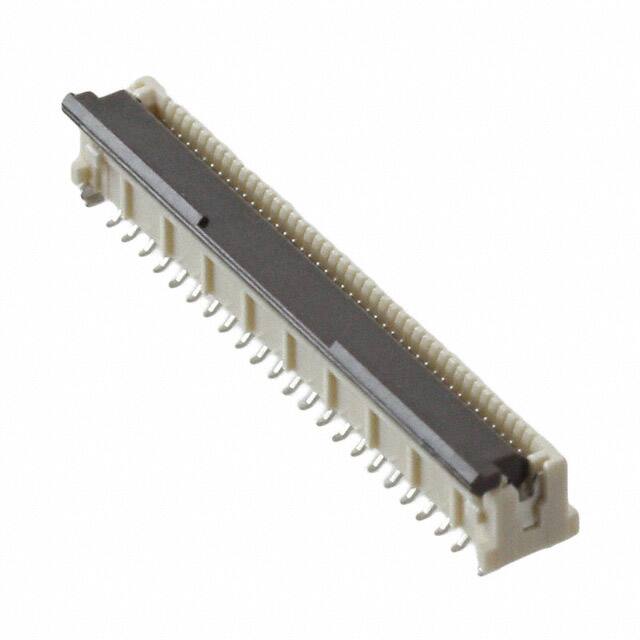

5019514500

Teknik Özellikler

Ul Flammability Code

94V-0

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e3

Actuatorcolor

Brown

Sıra Sayısı

1

Ffc Fcb Thickness

0.30mm

Terminal

Solder

Flat Flex Type

FFC, FPC

Housing Color

White

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Copper Alloy

Mixed Contacts

NO

Yayın Yılı

2008

Çalışma Sıcaklığı

-25°C~85°C

Seri

Easy-On 501951

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz Kodu

yes

Nominal Gerilim

50V

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Current Rating Amps

0.4A

Ambalaj

Cut Tape (CT)

Din Conformance

NO

Montaj Tipi

Surface Mount

Pitch

0.020 0.50mm

Cable End Type

Straight, Tapered

Height Above Board

0.159 4.04mm

Total Number Of Contacts

45

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish

Tin Bismuth

Filter Feature

NO

Iec Conformance

NO

Locking Feature

Flip Lock

Option

GENERAL PURPOSE

Pozisyon Sayısı

45

Connector Type

FFC/FPC CONNECTOR

Contact Gender

FEMALE
