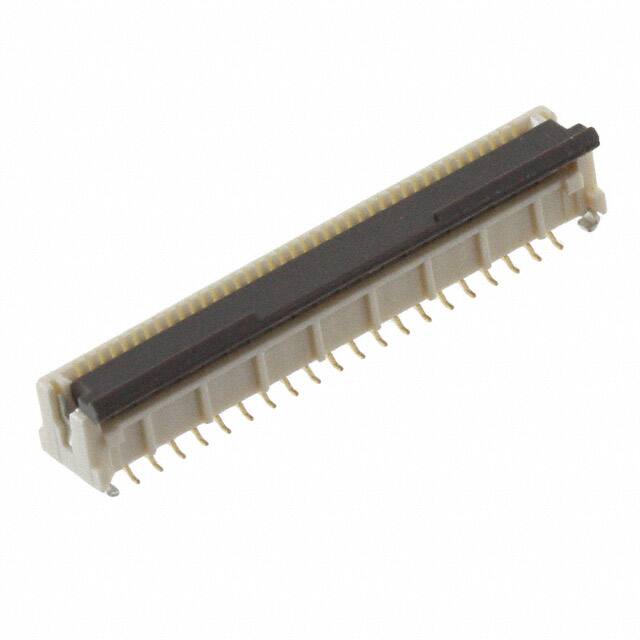

5019514010

Teknik Özellikler

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Nominal Gerilim

50V

Fabrika Tedarik Süresi

13 Weeks

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Ambalaj

Tape & Reel (TR)

Pcb Contact Row Spacing

2.8956 mm

Parça Durumu

Active

Current Rating Amps

0.4A

Montaj Tipi

Surface Mount

Total Number Of Contacts

40

Height Above Board

0.159 4.04mm

Cable End Type

Straight, Tapered

Body Depth

0.181 inch

Pitch

0.020 0.50mm

Filter Feature

NO

Body Breadth

0.177 inch

Contact Finish

Gold

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Option

GENERAL PURPOSE

Contact Finish Thickness

3.94μin 0.10μm

Locking Feature

Flip Lock

Contact Gender

FEMALE

Connector Type

FFC/FPC CONNECTOR

Mating Cycles

20

Pozisyon Sayısı

40

Pcb Contact Pattern

STAGGERED

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

Actuatorcolor

Brown

Ffc Fcb Thickness

0.30mm

Reliability

COMMERCIAL

Sıra Sayısı

1

Housing Color

White

Flat Flex Type

FFC, FPC

Terminal

Solder

Contact Pattern

RECTANGULAR

Mounting Option1

LOCKING

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)
