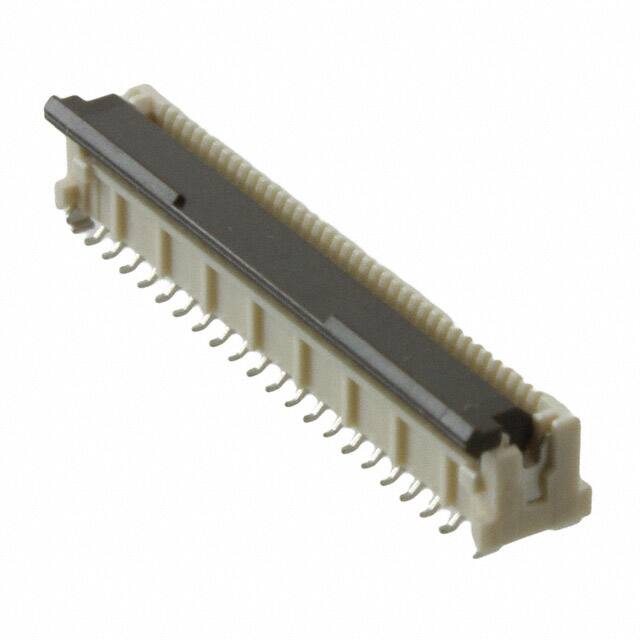

5019514000

Teknik Özellikler

Pcb Contact Pattern

STAGGERED

Cable End Type

Straight, Tapered

Filter Feature

NO

Pcb Contact Row Spacing

2.921 mm

Ambalaj

Cut Tape (CT)

Board Mounting Option

FITTING NAIL

Din Conformance

NO

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

ECCN Kodu

EAR99

Nominal Gerilim

50V

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Seri

Easy-On 501951

Çalışma Sıcaklığı

-25°C~85°C

Number Of Pcb Rows

2

Terminal

Solder

Mounting Option1

LOCKING

Reference Standard

UL

Contact Materials

Copper Alloy

Insulation Resistance

50000000Ohm

Actuatorcolor

Brown

Reliability

COMMERCIAL

Ffc Fcb Thickness

0.30mm

Option

GENERAL PURPOSE

Locking Feature

Flip Lock

Iec Conformance

NO

Connector Type

FFC/FPC CONNECTOR

Contact Gender

FEMALE

Pozisyon Sayısı

40

Height Above Board

0.159 4.04mm

Total Number Of Contacts

40

Pitch

0.020 0.50mm

Body Depth

0.159 inch

Body Length Or Diameter

0.948 inch

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Body Breadth

0.146 inch

Contact Finish

Tin Bismuth

Durability

20 Cycles

Current Rating Amps

0.4A

Parça Durumu

Active
