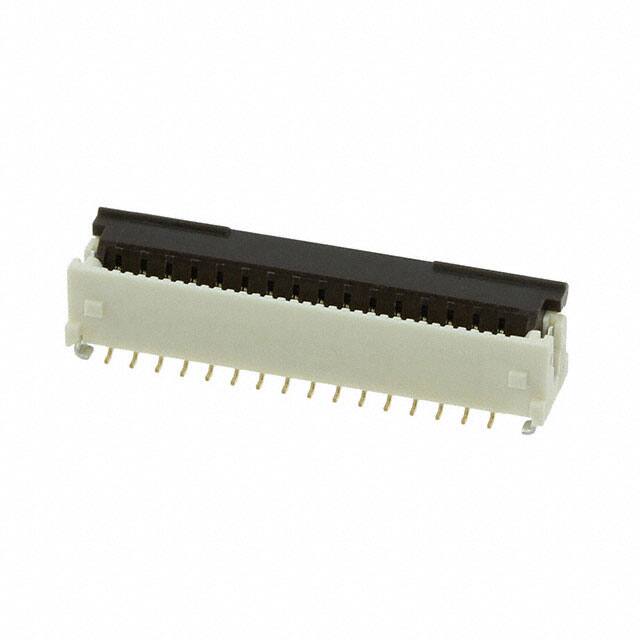

5019513210

Teknik Özellikler

Pcb Contact Pattern

STAGGERED

Contact Finish Thickness

3.94μin 0.10μm

Filter Feature

NO

Cable End Type

Straight, Tapered

Din Conformance

NO

Ambalaj

Tape & Reel (TR)

Pcb Contact Row Spacing

2.8956 mm

Material Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Çalışma Sıcaklığı

-25°C~85°C

Number Of Pcb Rows

2

Seri

Easy-On 501951

Mixed Contacts

NO

Reference Standard

UL

Contact Materials

Copper Alloy

Mounting Option1

LOCKING

Terminal

Solder

Ffc Fcb Thickness

0.30mm

Reliability

COMMERCIAL

Actuatorcolor

Brown

Pozisyon Sayısı

32

Connector Type

FFC/FPC CONNECTOR

Contact Gender

FEMALE

Mating Cycles

20

Locking Feature

Flip Lock

Iec Conformance

NO

Option

GENERAL PURPOSE

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Body Breadth

0.177 inch

Contact Finish

Gold

Body Depth

0.181 inch

Pitch

0.020 0.50mm

Total Number Of Contacts

32

Height Above Board

0.159 4.04mm

Montaj Tipi

Surface Mount

Current Rating Amps

0.4A

Parça Durumu

Active

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

13 Weeks
