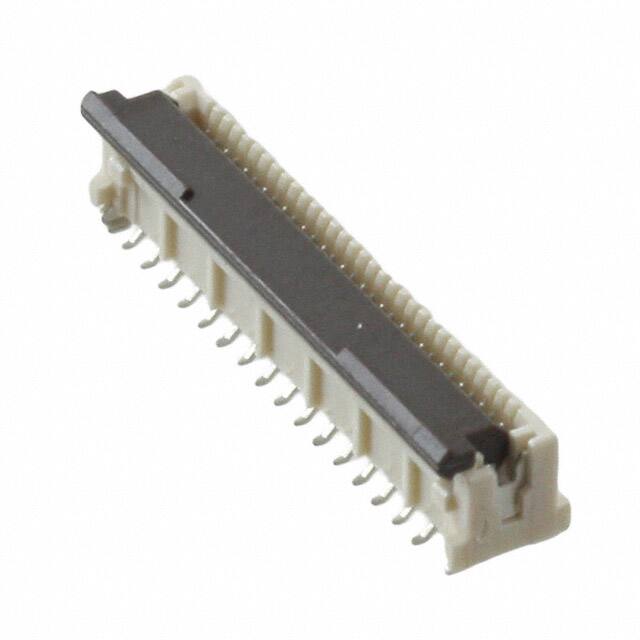

5019513200

Teknik Özellikler

Mixed Contacts

NO

Yayın Yılı

2015

Çalışma Sıcaklığı

-25°C~85°C

Montaj

Surface Mount

Seri

Easy-On 501951

Terminal

Solder

Housing Color

White

Reach Svhc

No SVHC

Flat Flex Type

FFC, FPC

Wirecable Type

Straight

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

400mA

Flammability Rating

UL94 V-0

Actuatorcolor

Brown

Sıra Sayısı

1

Ffc Fcb Thickness

0.30mm

Ul Flammability Code

94V-0

Mil Conformance

NO

JESD-609 Kodu

e3

Contact Plating

Tin

RoHS Durumu

ROHS3 Compliant

Orientation

Vertical

Locking Feature

Flip Lock

Iec Conformance

NO

Option

GENERAL PURPOSE

Pozisyon Sayısı

32

Contact Gender

FEMALE

Connector Type

FFC/FPC CONNECTOR

Pitch

0.020 0.50mm

Cable End Type

Straight, Tapered

Height Above Board

0.159 4.04mm

Total Number Of Contacts

32

Filter Feature

NO

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish

Tin Bismuth

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Current Rating Amps

0.4A

Montaj Tipi

Surface Mount
