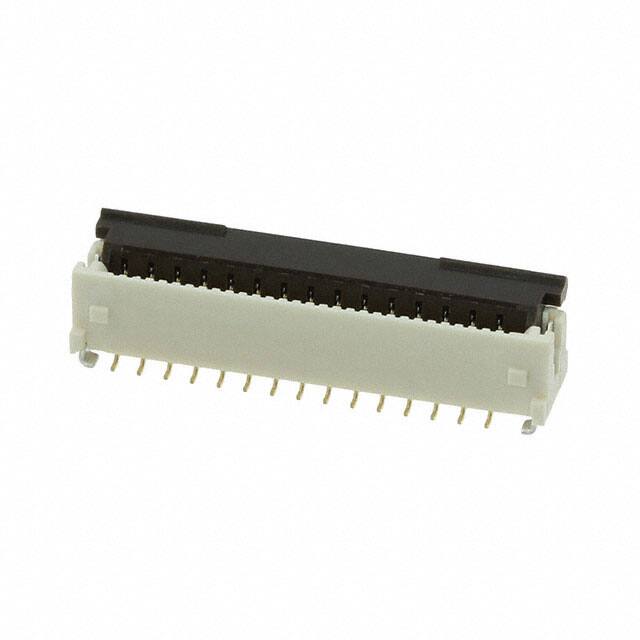

5019513010

Teknik Özellikler

Actuatorcolor

Brown

Reliability

COMMERCIAL

Ffc Fcb Thickness

0.30mm

Mixed Contacts

NO

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-25°C~85°C

Seri

Easy-On 501951

Terminal

Solder

Reference Standard

UL

Contact Materials

Copper Alloy

Mounting Option1

LOCKING

Pcb Contact Row Spacing

2.8956 mm

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

Nominal Gerilim

50V

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Contact Finish Thickness

3.94μin 0.10μm

Pcb Contact Pattern

STAGGERED

Cable End Type

Straight, Tapered

Filter Feature

NO

Sıra Sayısı

1

Ul Flammability Code

94V-0

Mil Conformance

NO

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2015

Contact Pattern

RECTANGULAR

Flat Flex Type

FFC, FPC

Housing Color

White

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Rating Amps

0.4A

Parça Durumu

Active

Montaj Tipi

Surface Mount

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

12 Weeks

Iec Conformance

NO

Locking Feature

Flip Lock

Option

GENERAL PURPOSE

Pozisyon Sayısı

30

Mating Cycles

20
