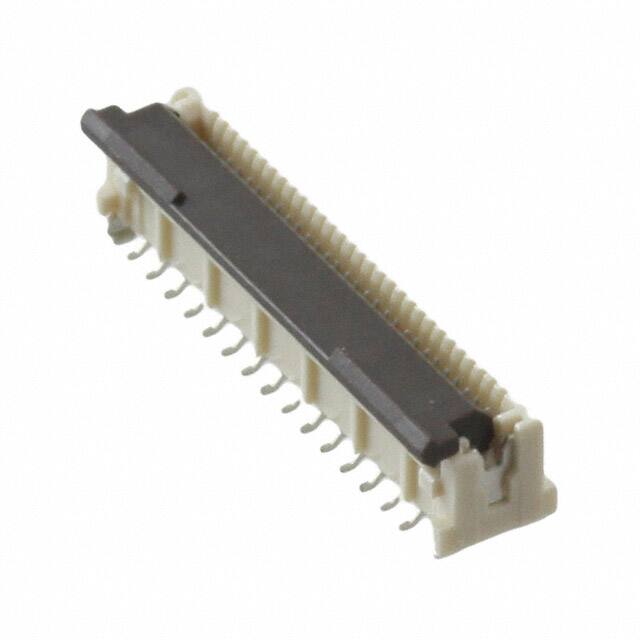

5019513000

Teknik Özellikler

Nominal Gerilim

50V

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Pcb Contact Row Spacing

2.921 mm

Ambalaj

Cut Tape (CT)

Board Mounting Option

FITTING NAIL

Din Conformance

NO

Cable End Type

Straight, Tapered

Filter Feature

NO

Pcb Contact Pattern

STAGGERED

Actuatorcolor

Brown

Insulation Resistance

50000000Ohm

Reliability

COMMERCIAL

Ffc Fcb Thickness

0.30mm

Terminal

Solder

Contact Materials

Copper Alloy

Reference Standard

UL

Mounting Option1

LOCKING

Mixed Contacts

NO

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-25°C~85°C

Seri

Easy-On 501951

Fabrika Tedarik Süresi

13 Weeks

Current Rating Amps

0.4A

Parça Durumu

Active

Durability

20 Cycles

Montaj Tipi

Surface Mount

Pitch

0.020 0.50mm

Body Depth

0.159 inch

Height Above Board

0.159 4.04mm

Total Number Of Contacts

30

Contact Finish

Tin Bismuth

Body Breadth

0.146 inch

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Body Length Or Diameter

0.752 inch

Locking Feature

Flip Lock

Iec Conformance

NO

Option

GENERAL PURPOSE

Pozisyon Sayısı

30

Contact Gender

FEMALE
