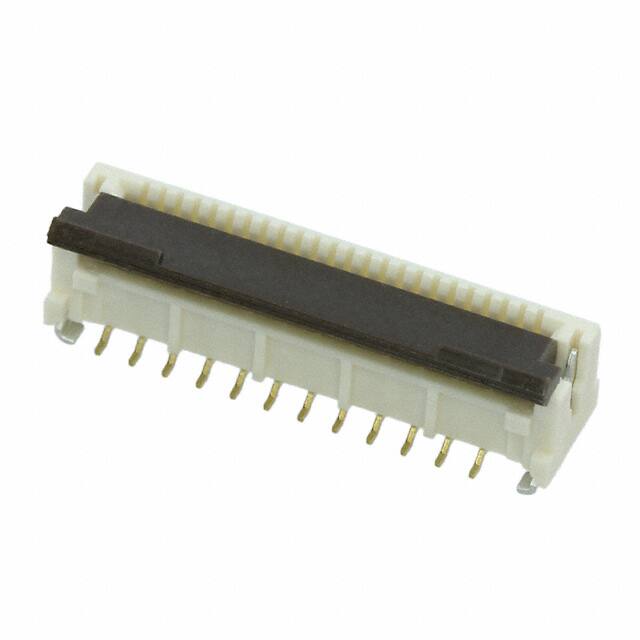

5019512410

Teknik Özellikler

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish

Gold

Body Breadth

0.146 inch

Body Length Or Diameter

0.594 inch

Pitch

0.020 0.50mm

Cable End Type

Straight, Tapered

Height Above Board

0.159 4.04mm

Total Number Of Contacts

24

Pozisyon Sayısı

24

Pcb Contact Pattern

STAGGERED

Connector Type

CARD EDGE CONNECTOR

Mating Cycles

20

Contact Finish Thickness

3.94μin 0.10μm

Locking Feature

Flip Lock

Material Flammability Rating

UL94 V-0

Nominal Gerilim

50V

Fabrika Tedarik Süresi

13 Weeks

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Pcb Contact Row Spacing

2.8956 mm

Parça Durumu

Active

Current Rating Amps

0.4A

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Mounting Option1

LOCKING

Terminal

Solder

Contact Pattern

RECTANGULAR

Housing Color

White

Flat Flex Type

FFC, FPC

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-25°C~85°C

Seri

Easy-On 501951

Yayın Yılı

2015

Contact Style

BELLOWED TYPE

Contact Resistance

40mOhm

RoHS Durumu

ROHS3 Compliant

REACH Uyumluluk Kodu

unknown

Sıra Sayısı

1
