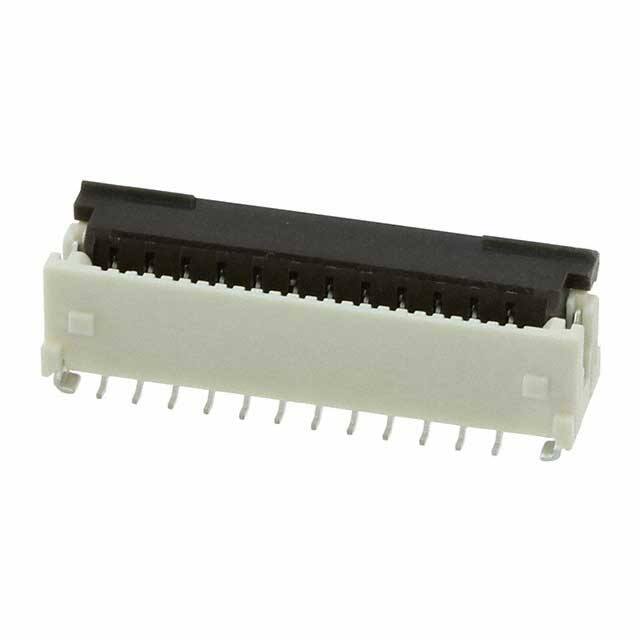

5019512400

Teknik Özellikler

Pitch

0.020 0.50mm

Cable End Type

Straight, Tapered

Height Above Board

0.159 4.04mm

Total Number Of Contacts

24

Filter Feature

NO

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish

Tin Bismuth

Locking Feature

Flip Lock

Iec Conformance

NO

Option

GENERAL PURPOSE

Pozisyon Sayısı

24

Contact Gender

FEMALE

Connector Type

FFC/FPC CONNECTOR

Nominal Gerilim

50V

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

13 Weeks

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Ambalaj

Cut Tape (CT)

Current Rating Amps

0.4A

Parça Durumu

Active

Montaj Tipi

Surface Mount

Din Conformance

NO

Terminal

Solder

Housing Color

White

Flat Flex Type

FFC, FPC

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

HTS Kodu

8536.69.40.51

Yayın Yılı

2008

Çalışma Sıcaklığı

-25°C~85°C

Seri

Easy-On 501951

Ul Flammability Code

94V-0

Mil Conformance

NO

JESD-609 Kodu

e3

RoHS Durumu

ROHS3 Compliant

Actuatorcolor

Brown

Sıra Sayısı

1
