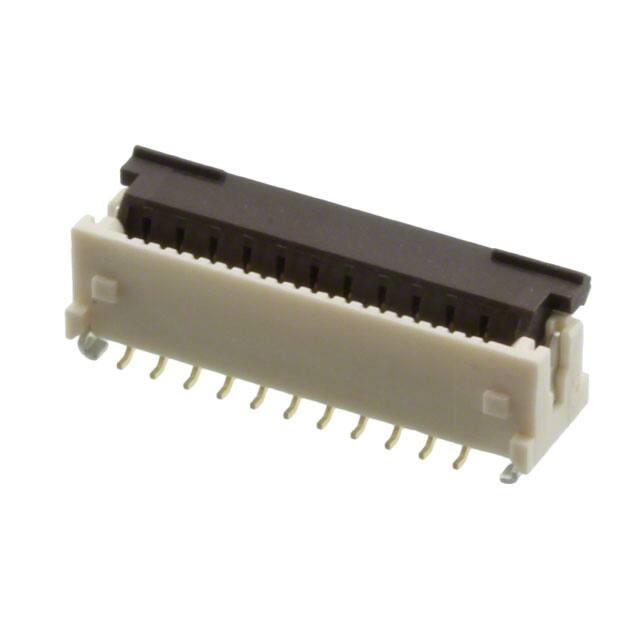

5019512210

Teknik Özellikler

Pitch

0.020 0.50mm

Body Depth

0.181 inch

Cable End Type

Straight, Tapered

Height Above Board

0.159 4.04mm

Total Number Of Contacts

22

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish

Gold

Body Breadth

0.177 inch

Locking Feature

Flip Lock

Contact Finish Thickness

3.94μin 0.10μm

Pcb Contact Pattern

STAGGERED

Pozisyon Sayısı

22

Mating Cycles

20

Connector Type

FFC/FPC CONNECTOR

Fabrika Tedarik Süresi

15 Weeks

Kurşunsuz Kodu

yes

Nominal Gerilim

50V

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Current Rating Amps

0.4A

Pcb Contact Row Spacing

2.8956 mm

Ambalaj

Tape & Reel (TR)

Montaj Tipi

Surface Mount

Terminal

Solder

Contact Pattern

RECTANGULAR

Flat Flex Type

FFC, FPC

Housing Color

White

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Mounting Option1

LOCKING

Yayın Yılı

2015

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-25°C~85°C

Seri

Easy-On 501951

RoHS Durumu

ROHS3 Compliant

Actuatorcolor

Brown

Sıra Sayısı

1

Reliability

COMMERCIAL
