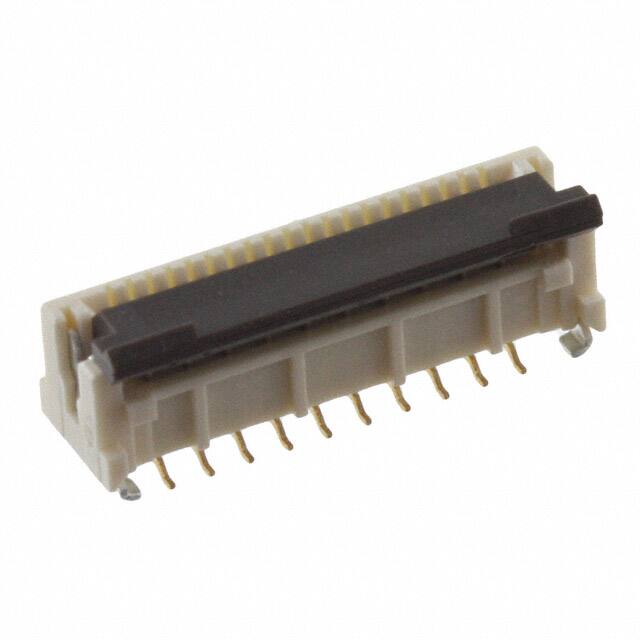

5019512010

Teknik Özellikler

Mounting Option1

LOCKING

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Housing Color

White

Flat Flex Type

FFC, FPC

Terminal

Solder

Contact Pattern

RECTANGULAR

Seri

Easy-On 501951

Number Of Pcb Rows

2

Çalışma Sıcaklığı

-25°C~85°C

Yayın Yılı

2007

Mixed Contacts

NO

RoHS Durumu

ROHS3 Compliant

Mil Conformance

NO

Ul Flammability Code

94V-0

Ffc Fcb Thickness

0.30mm

Reliability

COMMERCIAL

Sıra Sayısı

1

Actuatorcolor

Brown

Filter Feature

NO

Body Breadth

0.177 inch

Actuator Material

Polyamide (PA9T), Nylon 9T, Glass Filled

Contact Finish

Gold

Cable End Type

Straight, Tapered

Height Above Board

0.159 4.04mm

Total Number Of Contacts

20

Body Depth

0.181 inch

Pitch

0.020 0.50mm

Connector Type

FFC/FPC CONNECTOR

Contact Gender

FEMALE

Pozisyon Sayısı

20

Pcb Contact Pattern

STAGGERED

Option

GENERAL PURPOSE

Locking Feature

Flip Lock

Iec Conformance

NO

Contact Finish Thickness

3.94μin 0.10μm

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Nominal Gerilim

50V
