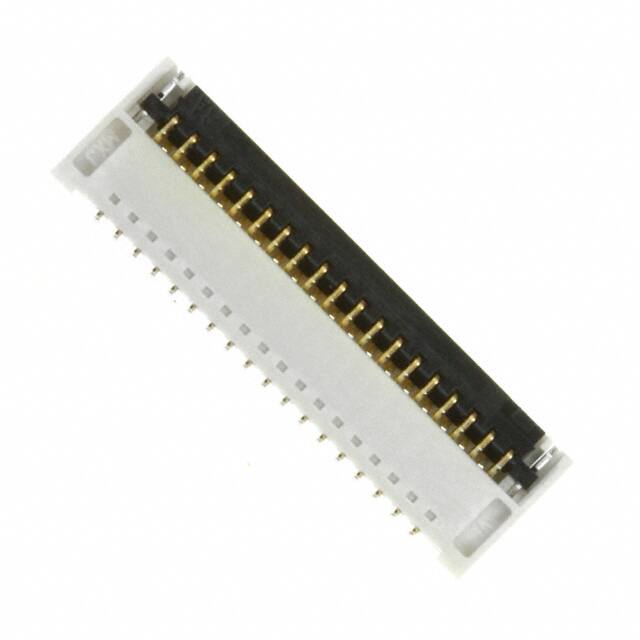

5019123790

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Housing Material

Polymer, Glass Filled

Kurşunsuz Kodu

yes

Nominal Gerilim

50V

ECCN Kodu

EAR99

Din Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Obsolete

Current Rating Amps

0.2A

Ambalaj

Cut Tape (CT)

Actuator Material

Polymer, Glass Filled

Contact Finish

Gold

Filter Feature

NO

Cable End Type

Tapered

Total Number Of Contacts

37

Pitch

0.012 0.30mm

Mating Cycles

20

Contact Gender

FEMALE

Pozisyon Sayısı

37

Option

GENERAL PURPOSE

Iec Conformance

NO

Locking Feature

Flip Lock

RoHS Durumu

ROHS3 Compliant

JESD-609 Kodu

e4

Additional Feature

EASY-ON, POLARIZED, BOTTOM CONTACT

Mil Conformance

NO

Ul Flammability Code

94V-0

Ffc Fcb Thickness

0.20mm

Sıra Sayısı

1

Contact Materials

Copper Alloy

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flat Flex Type

FPC

Terminal

Solder

Özellikler

Solder Retention

Seri

Easy-On 501912

Çalışma Sıcaklığı

-20°C~85°C

Yayın Yılı

2012

HTS Kodu

8536.69.40.51

Mixed Contacts

NO
