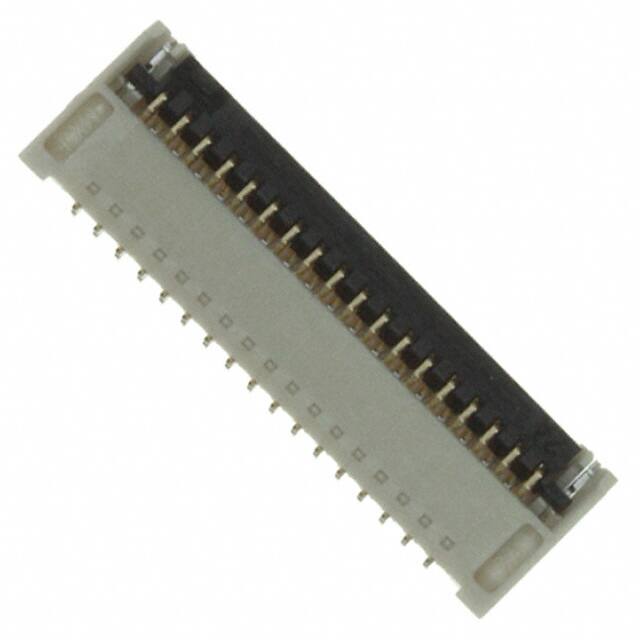

5019123590

Teknik Özellikler

Mixed Contacts

NO

Uzunluk

12.6mm

Çalışma Sıcaklığı

-20°C~85°C

Özellikler

Solder Retention

Seri

Easy-On 501912

Terminal

Solder

Wirecable Type

Straight

Contact Materials

Copper Alloy

Material

Thermoplastic

Akım Değeri

200mA

Contact Location

Bottom

Ffc Fcb Thickness

0.20mm

Cable End Type

Tapered

Filter Feature

NO

Ambalaj

Tape & Reel (TR)

Din Conformance

NO

Housing Material

Polymer, Glass Filled

Material Flammability Rating

UL94 V-0

Elv

Compliant

Yayın Yılı

2016

Max Voltage Rating Ac

50V

Reach Svhc

Unknown

Number Of Contacts

35

Housing Color

Black

Flat Flex Type

FPC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flammability Rating

UL94 V-0

Sıra Sayısı

1

Ul Flammability Code

94V-0

Mil Conformance

NO

JESD-609 Kodu

e4

Contact Resistance

80mOhm

RoHS Durumu

ROHS3 Compliant

Orientation

Right Angle

Iec Conformance

NO

Locking Feature

Flip Lock

Option

GENERAL PURPOSE

Pozisyon Sayısı

35

Stackable

No

Mating Cycles

20
