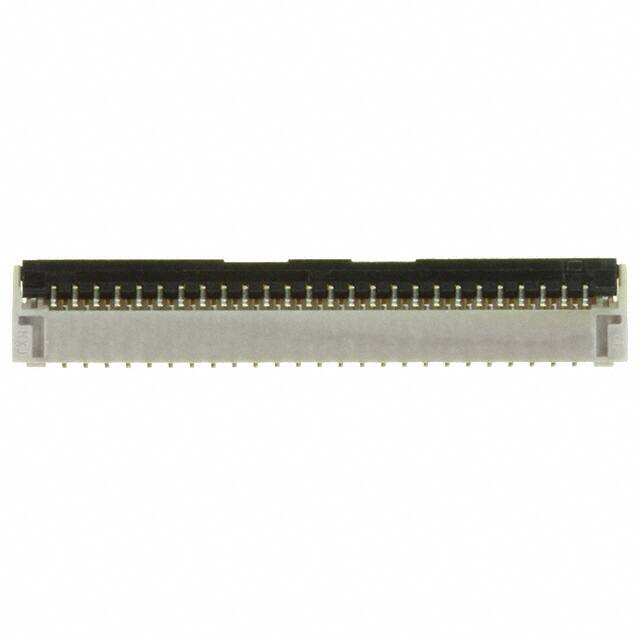

5016285191

Teknik Özellikler

Reference Standard

UL

Montaj Tipi

Surface Mount, Right Angle

Ffc Fcb Thickness

0.20mm

Sıra Sayısı

1

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

2

Terminal

Solder

Reliability

COMMERCIAL

Body Breadth

0.035 inch

Fabrika Tedarik Süresi

9 Weeks

Ambalaj

Tape & Reel (TR)

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Mixed Contacts

NO

Filter Feature

NO

Pozisyon Sayısı

51

Çalışma Sıcaklığı

-25°C~85°C

Contact Style

BELLOWED TYPE

Flat Flex Type

FPC

Mounting Option1

LOCKING

Cable End Type

Tabbed

Insulation Resistance

50000000Ohm

Option

GENERAL PURPOSE

Iec Conformance

NO

Board Mounting Option

FITTING NAIL

Mating Cycles

10

Contact Resistance

40mOhm

Body Depth

0.122 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Pitch

0.012 0.30mm

Pcb Contact Row Spacing

3.302 mm

Ul Flammability Code

94V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Total Number Of Contacts

51

JESD-609 Kodu

e3

Seri

Easy-On 501628

Current Rating Amps

0.2A

Contact Materials

Copper Alloy

Contact Pattern

RECTANGULAR

Contact Gender

FEMALE
