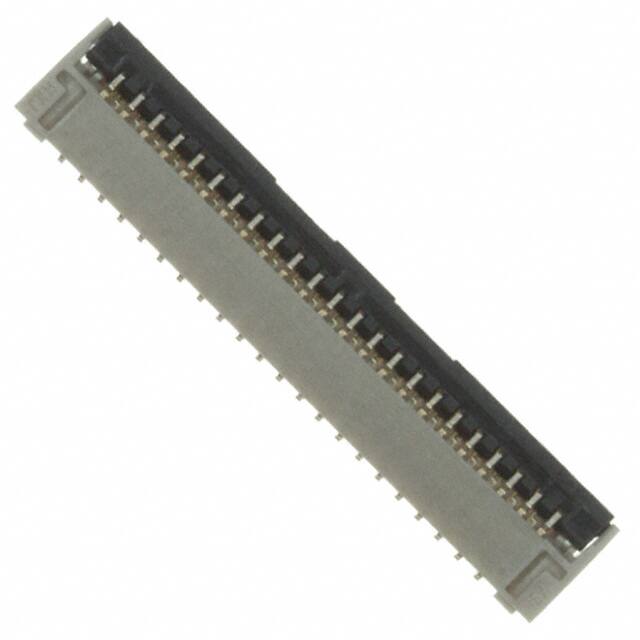

501628-4591

Teknik Özellikler

Cable End Type

Tabbed

Height Above Board

0.035 0.88mm

Mil Conformance

NO

Locking Feature

Flip Lock

Parça Durumu

Obsolete

Yayın Yılı

2009

Contact Finish

Gold

Din Conformance

NO

Nominal Gerilim

50V

Kurşunsuz Kodu

yes

Flat Flex Type

FPC

Çalışma Sıcaklığı

-25°C~85°C

Current Rating Amps

0.2A

Contact Materials

Copper Alloy

Mixed Contacts

NO

Pozisyon Sayısı

45

Filter Feature

NO

Contact Gender

FEMALE

Total Number Of Contacts

45

Ambalaj

Cut Tape (CT)

Ul Flammability Code

94V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Fabrika Tedarik Süresi

20 Weeks

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.012 0.30mm

Seri

Easy-On 501628

JESD-609 Kodu

e3

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Mating Cycles

10

Option

GENERAL PURPOSE

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Terminal

Solder

Montaj Tipi

Surface Mount, Right Angle

Ffc Fcb Thickness

0.20mm

REACH Uyumluluk Kodu

compliant

Sıra Sayısı

1
