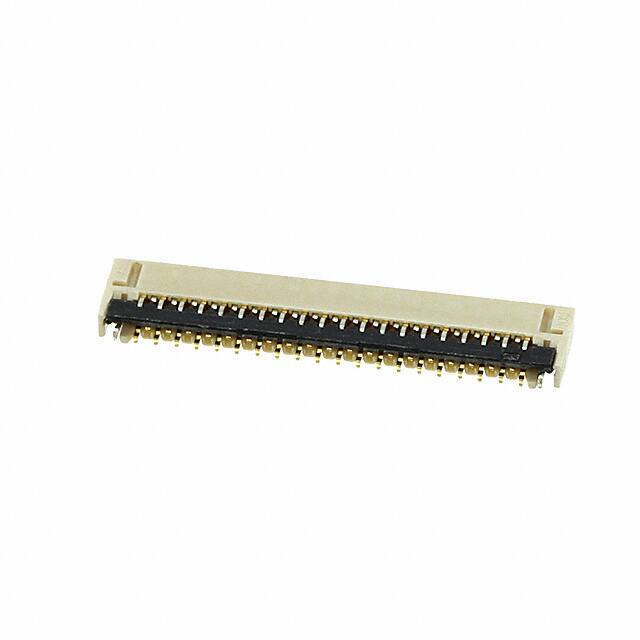

5016283991

Teknik Özellikler

Din Conformance

NO

Nominal Gerilim

50V

Pcb Contact Pattern

STAGGERED

Kurşunsuz Kodu

yes

Contact Finish

Gold

Yayın Yılı

2017

Locking Feature

Flip Lock

Mil Conformance

NO

Parça Durumu

Obsolete

Height Above Board

0.035 0.88mm

Contact Gender

FEMALE

Contact Pattern

RECTANGULAR

Contact Materials

Copper Alloy

Current Rating Amps

0.2A

Body Length Or Diameter

0.543 inch

Seri

Easy-On 501628

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Total Number Of Contacts

39

Pcb Contact Row Spacing

2.6416 mm

Pitch

0.012 0.30mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Insulation Resistance

50000000Ohm

Body Depth

0.122 inch

Contact Resistance

40mOhm

Mating Cycles

10

Option

GENERAL PURPOSE

Iec Conformance

NO

Mounting Option1

LOCKING

Flat Flex Type

FPC

Contact Style

BELLOWED TYPE

Cable End Type

Tabbed

Pozisyon Sayısı

39

Filter Feature

NO

Mixed Contacts

NO

Çalışma Sıcaklığı

-25°C~85°C

Body Breadth

0.035 inch

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled
