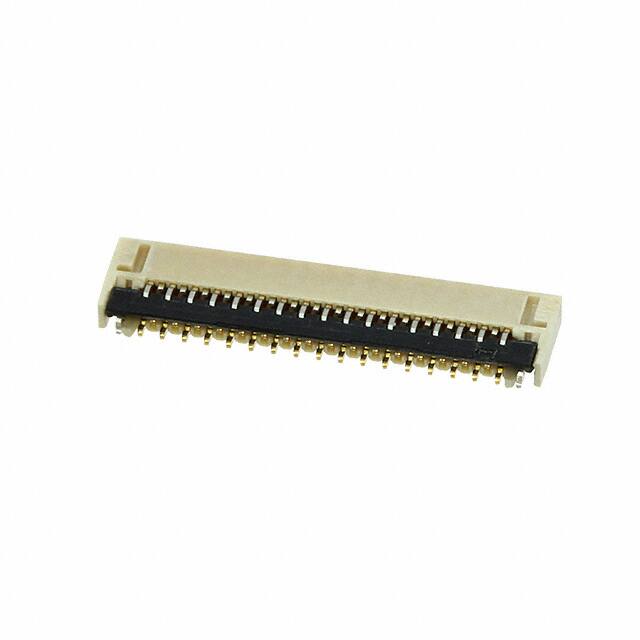

5016283391

Teknik Özellikler

Uzunluk

12mm

Seri

Easy-On 501628

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Actuator Material

Polyamide (PA), Nylon, Glass Filled

Reach Svhc

No SVHC

Ambalaj

Tape & Reel (TR)

Fabrika Tedarik Süresi

21 Weeks

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

0.012 0.30mm

Contact Resistance

40mOhm

Connector Type

CARD EDGE CONNECTOR

Terminal

Solder

Mating Cycles

10

RoHS Durumu

ROHS3 Compliant

Sıra Sayısı

1

Akım Değeri

200mA

Montaj Tipi

Surface Mount, Right Angle

Ffc Fcb Thickness

0.20mm

Orientation

Right Angle

Locking Feature

Flip Lock

Number Of Contacts

33

Parça Durumu

Active

Cable End Type

Tabbed

Height Above Board

0.035 0.88mm

Elv

Compliant

Gender

Receptacle

Nominal Gerilim

50V

Kurşunsuz Kodu

yes

Flat Flex Type

FPC

Contact Finish

Gold

Contact Location

Bottom

Çalışma Sıcaklığı

-25°C~85°C

Stackable

No

Current Rating Amps

0.2A

Contact Materials

Copper Alloy

Depth

3.1mm

Flammability Rating

UL94 V-0
