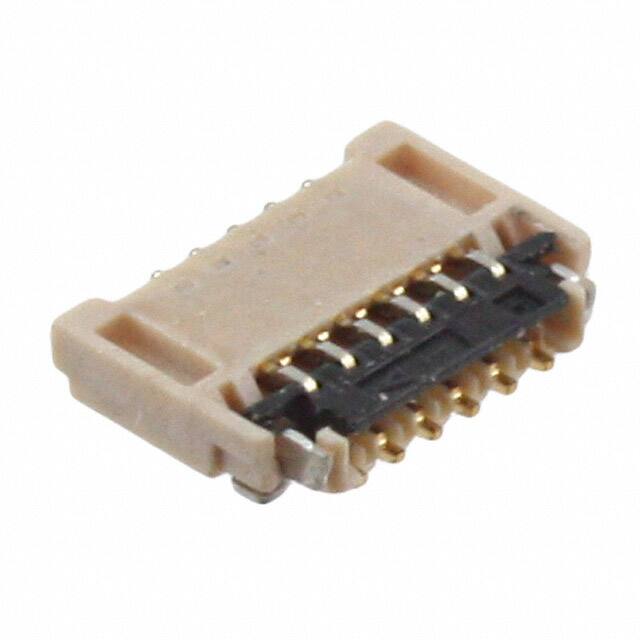

5007971194

Teknik Özellikler

ECCN Kodu

EAR99

Board Mounting Option

FITTING NAIL

Cable End Type

Tapered

Terminal

Solder

Reliability

COMMERCIAL

Height Above Board

0.041 1.05mm

Flat Flex Type

FPC

Iec Conformance

NO

Body Breadth

0.041 inch

Seri

Easy-On 500797

Nominal Gerilim

50V

Mounting Option1

LOCKING

Body Length Or Diameter

0.213 inch

Total Number Of Contacts

11

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Kurşunsuz Kodu

yes

Ffc Fcb Thickness

0.20mm

Parça Durumu

Obsolete

Mating Cycles

20

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Style

BELLOWED TYPE

Çalışma Sıcaklığı

-20°C~85°C

Contact Finish

Gold

Din Conformance

NO

Montaj Tipi

Surface Mount, Right Angle

Pitch

0.012 0.30mm

Sıra Sayısı

1

Actuator Material

Polyamide (PA46), Nylon 4/6

Current Rating Amps

0.2A

Ambalaj

Tape & Reel (TR)

Body Depth

0.152 inch

Pozisyon Sayısı

11

HTS Kodu

8536.69.40.51

Reference Standard

UL

Mixed Contacts

NO

Yayın Yılı

2012

Number Of Pcb Rows

2
