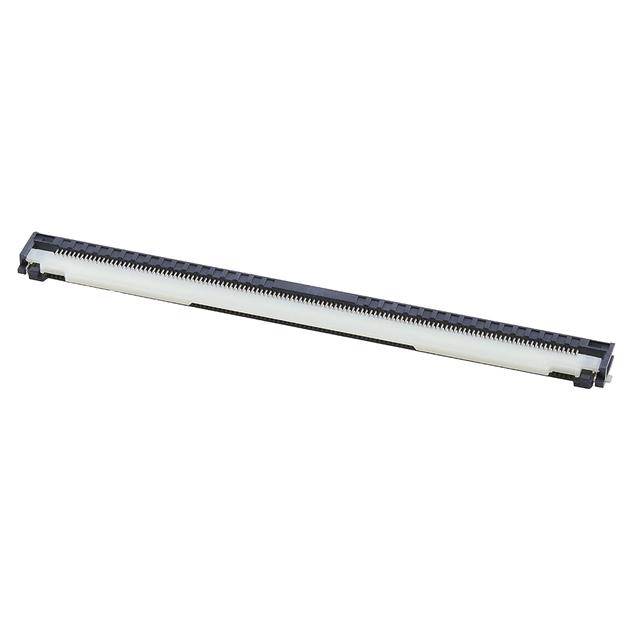

2203631200

Teknik Özellikler

Connectorcontact Type

Contacts, Bottom

Current Rating Amps

0.5A

Ffc Fcb Thickness

0.10mm

Çalışma Sıcaklığı

-40°C ~ 105°C

Voltage Rating

50V

Contact Materials

Phosphor Bronze

Height Above Board

0.079" (2.00mm)

Actuator Material

Polyamide (PA), Nylon

Flat Flex Type

FFC, FPC

Parça Durumu

Active

Mating Cycles

20

Pitch

0.016" (0.40mm)

Housing Color

Black

Cable End Type

Tabbed, Tapered

Seri

Easy-On FD4P

Pozisyon Sayısı

120

Özellikler

Board Guide, Zero Insertion Force (ZIF)

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Contact Finish Thickness

2.00μin (0.051μm)

Actuatorcolor

Natural

Material Flammability Rating

UL94 V-0

Montaj Tipi

Surface Mount, Right Angle

Contact Finish

Gold

Locking Feature

Flip Lock
