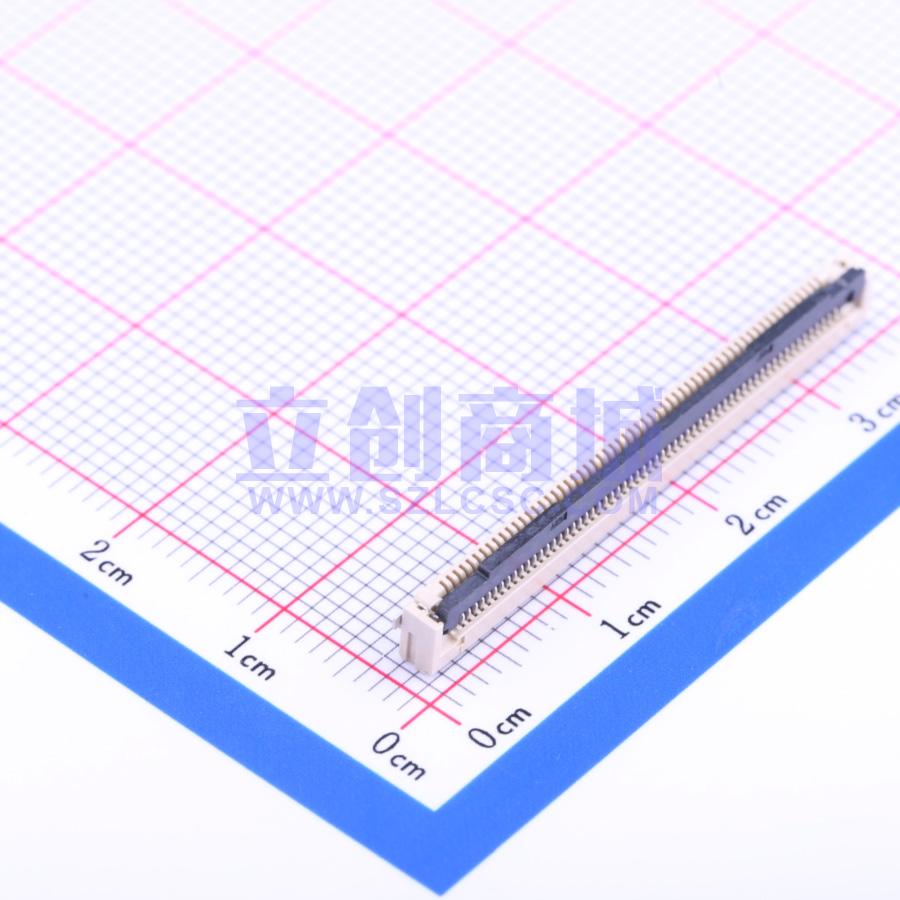

1040608017

Teknik Özellikler

Ffc Fcb Thickness

0.30mm

Withdrawl Forcemin

ZIF N

HTS Kodu

8536.69.40.51

Sıra Sayısı

1

Seri

Easy-On 104060

Kurşunsuz Kodu

yes

Nominal Gerilim

50V

Body Breadth

0.098 inch

Body Length Or Diameter

1.76 inch

Actuatorcolor

Black

Pcb Contact Pattern

RECTANGULAR

Pozisyon Sayısı

80

Plating Thickness

2μin

Insertion Forcemax

ZIF N

Pitch

0.020 0.50mm

Çalışma Sıcaklığı

-20°C~85°C

Cable End Type

Tabbed

Body Depth

0.142 inch

Montaj Tipi

Surface Mount, Right Angle

Height Above Board

0.098 2.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Flat Flex Type

FFC, FPC

Terminal

Solder

Actuator Material

Polybutylene Terephthalate (PBT), Glass Filled

Locking Feature

Flip Lock

Mounting Option1

LOCKING

JESD-609 Kodu

e4

Contact Materials

Phosphor Bronze

Ambalaj

Tape & Reel (TR)

Fabrika Tedarik Süresi

11 Weeks

Yayın Yılı

2015

Connector Type

FFC/FPC CONNECTOR

Material Flammability Rating

UL94 V-0

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Number Of Pcb Rows

1

Contact Finish Thickness

2.00μin 0.051μm

Reliability

COMMERCIAL

Parça Durumu

Active

Contact Style

BELLOWED TYPE

RoHS Durumu

ROHS3 Compliant
