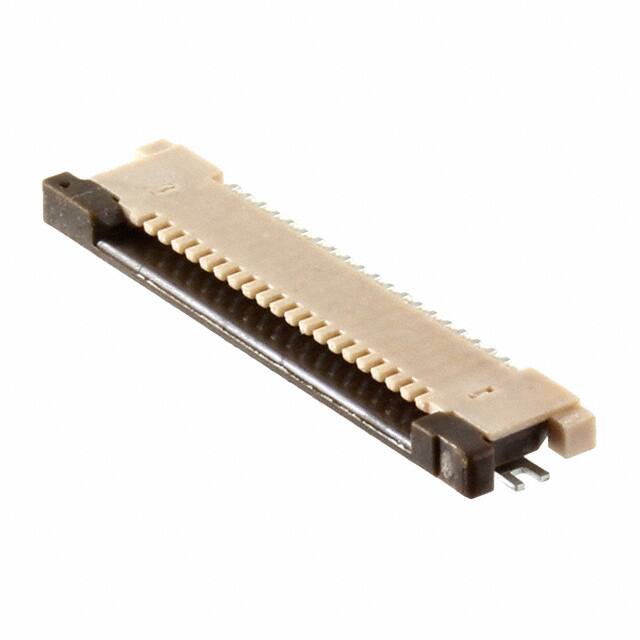

0545502033

Teknik Özellikler

Pozisyon Sayısı

20

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

FFC/FPC CONNECTOR

Fabrika Tedarik Süresi

18 Weeks

Actuatorcolor

Brown

Housing Material

Liquid Crystal Polymer (LCP), Glass Filled

Height Above Board

0.047 1.20mm

Filter Feature

NO

Cable End Type

Straight, Tapered

Pitch

0.020 0.50mm

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Finish Thickness

39.4μin 1.00μm

Ffc Fcb Thickness

0.30mm

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

0.5A

Parça Durumu

Active

Nominal Gerilim

50V

Actuator Material

Polyphenylene Sulfide (PPS), Glass Filled

Option

GENERAL PURPOSE

Montaj Tipi

Surface Mount, Right Angle

Housing Color

White

Additional Feature

EASY-ON, POLARIZED

Ul Flammability Code

94V-0

Seri

Easy-On 54550

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Locking Feature

Slide Lock

Mil Conformance

NO

Çalışma Sıcaklığı

-40°C~85°C

Sıra Sayısı

1

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Total Number Of Contacts

20

Contact Finish

Tin Bismuth

Flat Flex Type

FFC, FPC

Contact Gender

FEMALE
